Brand: Altronix
|
SKU:
10165613

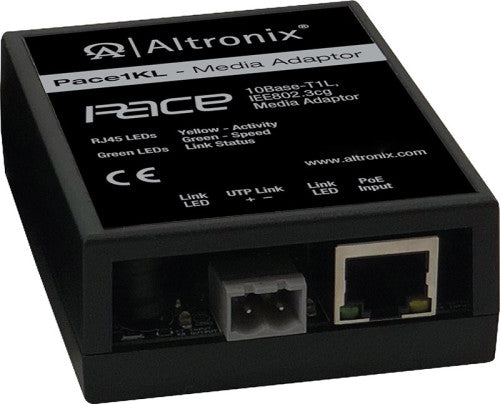

Altronix PACE1KL | Long Range Single Pair Media Adapter, 1000m SPE over twisted pair (UTP), IEEE802.3cg, 10Base-T1L
Regular price
$230.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix PACE1KL | Long Range Single Pair Media Adapter, 1000m SPE ...
Regular price
$230.14
Unit price
Description
Description
Altronix PACE1KL | Long Range Single Pair Media Adapter, 1000m SPE over twisted pair (UTP), IEEE802.3cg, 10Base-T1L
Pace1KL is a SPE (Single Pair Ethernet) Ethernet media adaptor that enables connecting 10Base-T1L, IEEE 802.3cg compliant devices such as temperature sensors, industrial controllers, etc. to the network in an industrial enviornment at longer distances.
Pace1KL is a SPE (Single Pair Ethernet) Ethernet media adaptor that enables connecting 10Base-T1L, IEEE 802.3cg compliant devices such as temperature sensors, industrial controllers, etc. to the network in an industrial enviornment at longer distances.
Altronix - PACE1KL - Features and Specifications
- INPUT
- Powered by PoE midspan or endspan.
- SPE (Single Pair Ethernet) over UTP or 16/2 AWG 18 AWG link
- Wire type: twisted pair (2-wire, UTP).
- Distance: 1000m, 18/2 AWG @ 10Mbps 1km (3280 ft), 16/2 AWG @ 10Mbps
- Ethernet
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5e or higher.
- Distance: up to 100m from midspan.
- Speed: 10/100BaseT, half/full duplex, auto negotiation.
- LED Indicators
- Green LED (right):
- Data transmission (link) over SPE
- Yellow and Green LED (RJ45 jack):
- IP Link status, 10/100Base-T/active.
Specifications
Specifications
Altronix - PACE1KL - Enclosure
- Modular plastic case.
- Dimensions 2.5"W x 1"H x 3.8"D (64 mm W x 25 mm H x 97 mm D).
Altronix - PACE1KL - Temperature
- Operating and Storage: -40ºC to 75ºC (-40º to 167ºF).
- Relative Humidity:
- Relative Humidity 85% +/- 5%.
- Operating Altitude:
- -304.8 to 2,000m.
Altronix - PACE1KL - Specifications
| UNSPSC Code | 43201553 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - PACE1KL - Weights (approximate)
| Product Weight: | 0.4 Lbs. (0.18 kg). |
|---|---|
| Shipping Weight | 1 Lbs. (0.45 kg). |
