Altronix PACE1KLDC | Single Pair Ethernet Media Adapter, IEEE 802.3...
Description
Description

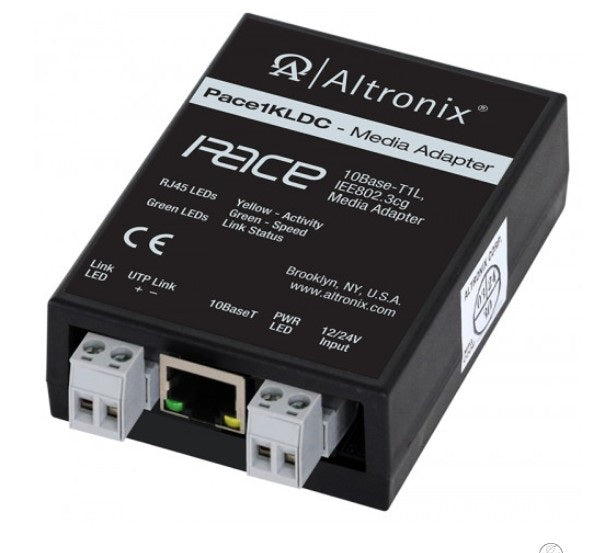

Altronix Pace1KLDC is a SPE (Single Pair Ethernet) media converter/adapter that enables connecting 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/ Elevators/HVAC Controllers and sensors, etc. to an Ethernet network. Long distance headend to remote-end device cabling can be achieved to over 1km (1,000m, 3,280 ft.).In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e. LONworks, RS485, 4-20mA Control Loops, etc. can be achieved by using the existing two wire cabling, thus saving rip-out & reinstallation costs.Operationally, the Pace1KLDC is powered via 12/24VDC or 12/24VAC at the headend, ethernet connection to the switch transmitting network data (10BaseT), and single pair Ethernet connection up to 1km (1,000m, 3,280 ft.) to the remote T1L device.
Specifications
Specifications
Altronix - PACE1KLDC - Specifications
| Input Voltage | Powered via 12/24VDC or 12V/24VAC. |
|---|---|
| SPE | Twisted pair (2-wire, UTP). |
| Ethernet/Data Port | Connectivity: RJ45, auto-crossover. |
| Operating Temperature | 40º C to 75º C (– 40º F to 167º F). |
| Storage Temperature | 40º C to 75º C (– 40º F to 167º F). |
| Dimensions | 5.2"W x 1.7"H x 8.4"D |
| Weights | 0.4 Lbs. |
