Brand: Altronix
|
SKU:
742804

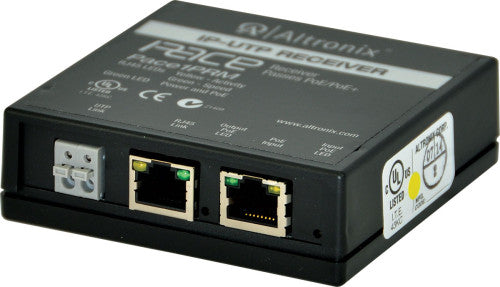

Altronix PACE1PRM | Long Range Ethernet Single Port Receiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver
Regular price
$221.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix PACE1PRM | Long Range Ethernet Single Port Receiver, 100Mb...
Regular price
$221.24
Unit price
Description
Description
The Pace1PRM is a long range Ethernet receiver. It is powered via a PoE midspan such as the Altronix Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over single twisted pair (UTP) or structured cable.
Specifications
Specifications
Enclosure
- Modular plastic case. VB6
- Dimensions 3.5"W x 1"H x 3.5"D (88.89 mm W x 25.4 mm H x 88.89 mm D).
Input
- Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
Ethernet
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5e or a single twisted pair UTP.
- Speed: 10/100BaseT, half/full duplex, auto negotiation.
- PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM. Power provided by Pace1PRM to Pace1PTM by PoE protocol.
- Throughput is rated to pass 100Mbps of data.
UTP (Single Twisted Pair UTP)
- Distance: up to 152m @ 100Mbps.
CAT5e or Higher
- Distance: up to 500m @ 100Mbps.
LED Indicators
- Green - PoE ON (by respective RJ45 jack).
- RJ45 jack: Yellow and Green LED IP Link status, 10/100Base-T/active.
Weights (approximate)
| Product Weight | 0.25 Lbs. (0.11 kg). |
|---|---|
| Shipping Weight | 0.42 Lbs. (0.19 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment | https://iq.ulprospector.com/en/profile?e=2998313 |
