Description
Description

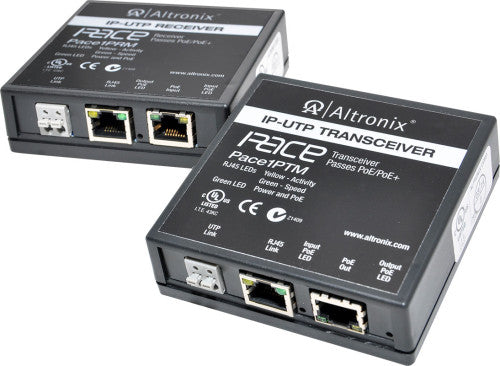

Pace1PRMT is a long range Ethernet adapter kit which transmits data at 100Mbps full duplex and power via a single twisted pair (UTP) or Cat5e or higher cable in a PoE(+) compliant format. The Pace1PRM receiver is powered via a PoE midspan such as the Altronix Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over single twisted pair (UTP) or structured cable.
Specifications
Specifications
Enclosure
- Modular plastic case. VB6
- Dimensions 3.5"W x 1"H x 3.5"D (88.89 mm W x 25.4 mm H x 88.89 mm D).
Input
- Pace1PRM:
- Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
- Pace1PTM:
- Powered by Pace1PRM.
Ethernet
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5 or 1 pair UTP structured cable.
- Distance: up to 500m (1,600 ft.).
- Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM. Power provided by Pace1PRM to Pace1PTM by PoE protocol.
- Throughput is rated to pass 100Mbps of data at distances up to 500m (1,600 ft.)
CAT5e or higher
- Distance: up to 500m (1,600 ft.) @ 100Mbps.
UTP (single pair)
- Distance: up to 152m (500 ft.) @ 100Mbps.
Weights (approximate)
| Product Weight | 0.24 Lbs. (0.11 kg). |
|---|---|
| Shipping Weight | 0.42 Lbs. (0.19 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment | https://iq.ulprospector.com/en/profile?e=2998313 |
