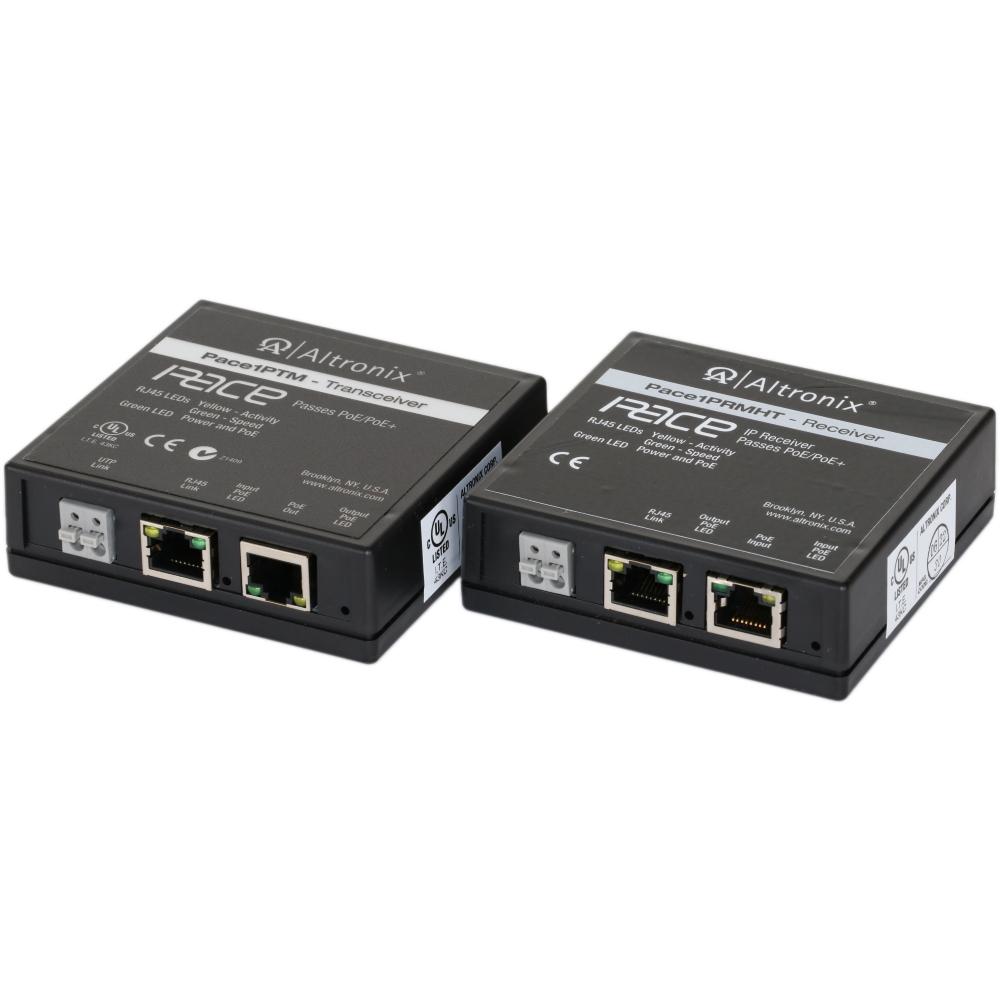

Altronix PACE1PRMTHT | Long Range Ethernet Adapter Kit, 100Mbps, IP and PoE+ over Extended Distance CAT5e Solution, Includes Receiver & Transceiver
Regular price
$447.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix PACE1PRMTHT | Long Range Ethernet Adapter Kit, 100Mbps, IP...
Regular price
$447.69
Unit price
Description
Description
Altronix PACE1PRMTHT | Long Range Ethernet Adapter Kit, 100Mbps, IP and PoE+ over Extended Distance CAT5e Solution, Includes Receiver & Transceiver
Wire type: 4-pair CAT-5.
Distance: CAT5e: up to 500m (1,600 ft.).
Throughput is rated to pass 100mbps of data.
With proper headend equipment multiple Megapixel cameras can be used.
Speed: 100BaseT, full duplex, auto negotiation.
Yellow and Green LED (by RJ45 jack): IP Link status, 100Base-T/active.
15W: – 40ºC to 75ºC (– 40ºF to 167ºF).
25W: – 40ºC to 49ºC (– 40ºF to 120ºF).
Pace1PTM:
15W: – 40ºC to 75ºC (– 40ºF to 167ºF).
25W: – 40ºC to 70ºC (– 40ºF to 158ºF).
30W: – 40ºC to 60ºC (– 40ºF to 140ºF).
Relative humidity: 85%, +/- 5%, non-condensing.
Input / Pace1PRMHT:
Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W)./ Pace1PTM:
Powered by Pace1PRM.Ethernet
Connectivity: RJ45, auto-crossover.Wire type: 4-pair CAT-5.
Distance: CAT5e: up to 500m (1,600 ft.).
Throughput is rated to pass 100mbps of data.
With proper headend equipment multiple Megapixel cameras can be used.
Speed: 100BaseT, full duplex, auto negotiation.
LED Indicators
Green LED: PoE ON.Yellow and Green LED (by RJ45 jack): IP Link status, 100Base-T/active.
Temperature / Operating Temperature:
Pace1PRMHT:15W: – 40ºC to 75ºC (– 40ºF to 167ºF).
25W: – 40ºC to 49ºC (– 40ºF to 120ºF).
Pace1PTM:
15W: – 40ºC to 75ºC (– 40ºF to 167ºF).
25W: – 40ºC to 70ºC (– 40ºF to 158ºF).
30W: – 40ºC to 60ºC (– 40ºF to 140ºF).
/ Storage Temperature:
-40ºC to 75ºC (-40º to 167ºF).Relative humidity: 85%, +/- 5%, non-condensing.
Operating Altitude
- 304.8 to 2,000m.Overview
- Altronix Pace1PRMTHT is a long range Ethernet adapter kit which transmits data at 100mbps full duplex and power via a CAT5e or higher cable in a PoE(+) compliant format. Pace1PRMHT receiver is powered via a PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant power over the cable to Pace1PTM transceiver which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate cost-effective solutions for IP devices that need to be installed at distances greater than 100m.
Specifications
Specifications
Altronix - PACE1PRMTHT - Overview
- Altronix Pace1PRMTHT is a long range Ethernet adapter kit which transmits data at 100mbps full duplex and power via a CAT5e or higher cable in a PoE(+) compliant format. Pace1PRMHT receiver is powered via a PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant power over the cable to Pace1PTM transceiver which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate cost-effective solutions for IP devices that need to be installed at distances greater than 100m.
Altronix - PACE1PRMTHT - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - PACE1PRMTHT - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | PACE1PRMTHT |
| Item Description | Long Range Ethernet Adapter Kit, 100Mbps, IP and PoE+ over Extended Distance CAT5e Solution, Includes Receiver & Transceiver |
| Agency Listings | CE Compliant |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 0.4 Lbs. |
| (0.18 kg). | Shipping Weight: |
| 1 Lbs. | (0.45 kg). |
