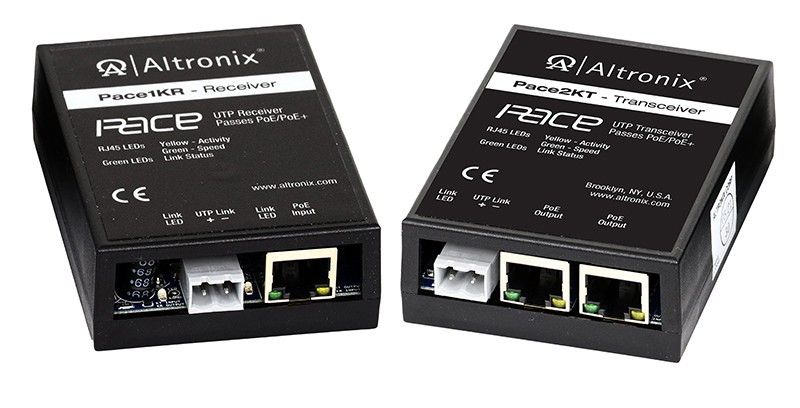

Altronix PACE2KRT | Long Range Single Pair (UTP) Ethernet Adapter Kit includes: Pace1KR Receiver and Pace2KT Transceiver
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix PACE2KRT | Long Range Single Pair (UTP) Ethernet Adapter K...
Description
Description
Altronix Pace2KRT is a long-range Ethernet adapter kit solution that transmits data and power via twisted pair (2-wire, UTP or shielded) in a PoE(+) compliant format. In addition to new SPE (UTP) Ethernet network installations for Surveillance cameras/Security/Industrial/BMS/HVAC/Elevator Controllers, applications include upgrading of legacy networks, i.e. LONworks, RS485, 4-20ma Control Loops, etc. by using the existing two wire cabling, thus saving rip-out & reinstallation costs. Operationally, the Pace1KR is connected to a POE midspan/endspan switch at the headend and passes network data and power to the Pace2KT from the switch via UTP up to 1km (1,000m, 3,280 ft.) to two (2) remote 10/100 POE devices, such a as a camera/s or controllers. Data is only supplied to the remote device for non-enabled devices. Cable distances and multi-node device drop-offs are facilitated by using one of the two Pace2KT ports for the continued network link in a daisy chain manner.
Altronix - PACE2KRT - Features
- Input
- Pace1KR:
- Powered by midspan or endspan
- PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W)
- Pace2KT:
- Powered by Pace1KR
- UTP Connection
- Wire type: Twisted pair (2-wire, UTP or shielded)
- Distance: 1km (1,000m, 3,280 ft.), 16/2 AWG or higher @ 10Mbps
- Ethernet Connection
- Connectivity: RJ45, auto-crossover
- Wire type: 4-pair, CAT5e or higher
- Distance: up to 100m from midspan to Pace1KR receiver (headend), 100m from PaceKT transceiver to device
- Speed: 10/100BaseT, half/full duplex, auto negotiation
- PoE: IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W) delivered to device by Pace1KR Power provided by Pace1KR to Pace2KT by PoE protocol
- Indicators (LED)
- Green LED (left):
- PoE (link)
- Green LED (right):
- Data transmission (link)
- Yellow and Green LED (by RJ45 jack):
- IP Link status, 10/100Base-T/active
- Electrical
- Temperature:
- Operating: 40º C to 75º C ( 40º F to 167º F)
- Storage: 40º C to 75º C ( 40º F to 167º F)
- Relative Humidity: 85% +/5%
- Operating Altitude: 304.8 to 2,000m
Specifications
Specifications
Altronix - PACE2KRT - Product Categories
- Networking
- Networking
- Repeater / Transceiver / Media Converter
Altronix - PACE2KRT - Specifications
| Device | Transceivers |
|---|---|
| UNSPSC Code | 43201553 |
