Brand: Altronix
|
SKU:
742806

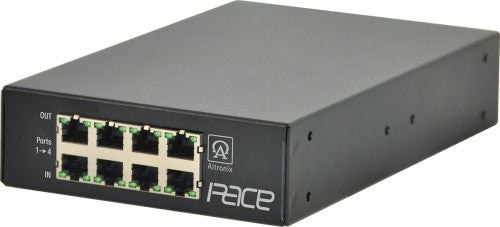

Altronix PACE4PRM | Long Range Ethernet 4 Port Receiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver
Regular price
$924.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix PACE4PRM | Long Range Ethernet 4 Port Receiver, 100Mbps pe...
Regular price
$924.09
Unit price
Description
Description
Pace4PRM are long range Ethernet receivers that transmit data at 100Mbps full duplex and power via CAT5e or higher cable in a PoE(+) compliant format. The Pace4PRM receivers are powered via a PoE midspan such as the Altronix Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at the distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over structured cable.
Specifications
Specifications
Enclosure
- Dimensions 5.2"W x 1.7"H x 8.4"D (132 mm W x 43 mm H x 213 mm D).
Input
- Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
Ethernet
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5e.
- Distance: up to 500m.
- Speed: 100BaseT, full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM. Power provided by Pace4PRM to Pace1PTM by PoE protocol.
CAT5e or Higher
- Throughput is rated to pass 100Mbps of data at distances up to 500m. With proper headend equipment this supports Megapixel, HD720, HD1080.
- Distance: up to 500m @ 100Mbps.
LED Indicators
- Yellow and Green LED (by RJ45 jack):
- IP Link status, 10/100Base-T/active.
Temperature
- Operating Temperature: -20ºC to 49ºC (-4ºF to 120.2ºF).
- Storage Temperature: -30ºC to 70ºC (-22ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
Weights (approximate)
| Product Weight | 1.35 Lbs. (0.61 kg). |
|---|---|
| Shipping Weight | 1.7 Lbs. (0.77 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment | https://iq.ulprospector.com/en/profile?e=2998313 |
