Brand: Altronix | SKU: 399420

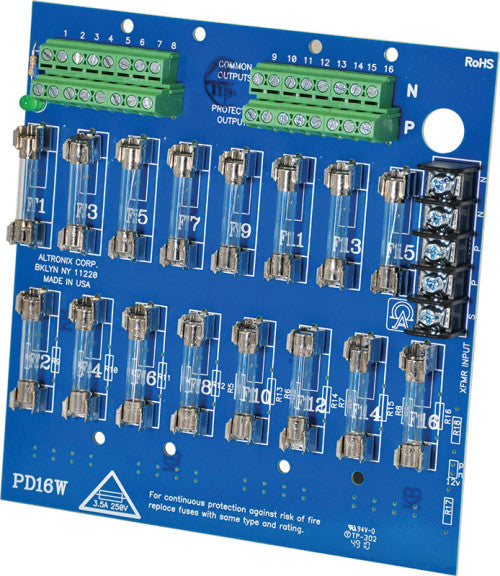

Altronix PD16W | Power Distribution Module, 16 Fused Outputs up to 28VAC/VDC, Board

$56.14

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix PD16W UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into sixteen (16) individually fuse protected outputs.

Specifications

Dimensions (approximate)

6"W x 5.875"L x 0.95"H (152.4 mm W x 149.225 mm L x 24.13 mm H).

Input

12VDC or 24VDC up to 10A or
24VAC or 28VAC, up to 12A.

Outputs

Sixteen (16) fuse protected outputs.
2.5A per output max.
Total output current should not exceed max current rating of power supply employed.
Fuses are rated @ 3.5A/250V.

Visual Indicators.

Power On green LED indicator.

Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.

Weights (approximate)

Product Weight	0.4 Lbs. (0.18 kg).
Shipping Weight	0.5 Lbs. (0.23 kg).

Agency Listings

UL Listed For: Power Supplies for Fire Protective Signaling Systems (UL1481)	https://iq.ulprospector.com/en/profile?e=153662
cUL Listed For: Power Supplies for use with Burglar Alarm Systems (UL603)	https://iq.ulprospector.com/en/profile?e=2087

Documents and Downloads
