Brand: Altronix | SKU: 380505

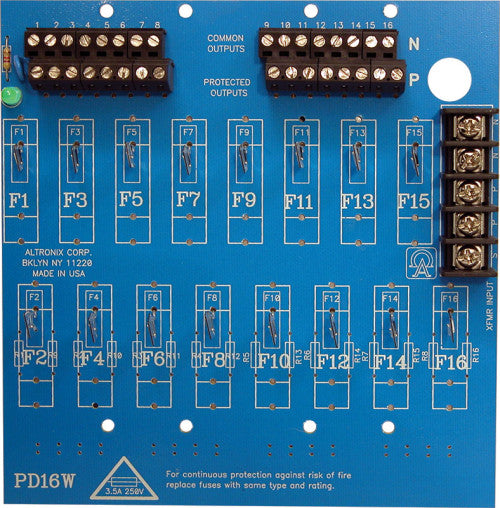

Altronix PD16WCB | Power Distribution Module, 16 PTC Outputs up to 28VAC/VDC, Board

$56.70

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix PD16WCB UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into sixteen (16) PTC protected Class 2 Rated power-limited outputs.

Main Features

Power LED indicator.

Specifications

Dimensions (approximate)

6"W x 5.875"L x 0.95"H (152.4 mm W x 149.225 mm L x 24.13 mm H).

Input

12VDC or 24VDC up to 10A or
24VAC or 28VAC, up to 12A.

Output

Sixteen (16) PTC protected Class 2 Rated power-limited outputs (auto-resettable).
2A per output max.
Total output current should not exceed max current rating of power supply employed.
PTCs are rated @ 2A/250V.

Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.

Weights (approximate)

Product Weight	0.4 Lbs. (0.18 kg).
Shipping Weight	0.5 Lbs. (0.23 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1606
cUL Listed For: Power Supplies for Fire Protective Signaling Systems (UL1481)	https://iq.ulprospector.com/en/profile?e=153662
