Brand: Altronix
|
SKU:
390986
Altronix PD4 | Power Distribution Module, 4 Fused Outputs up to 28VAC/VDC, Board
Regular price
$33.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix PD4 | Power Distribution Module, 4 Fused Outputs up to 28V...
Regular price
$33.95
Unit price
Description
Description

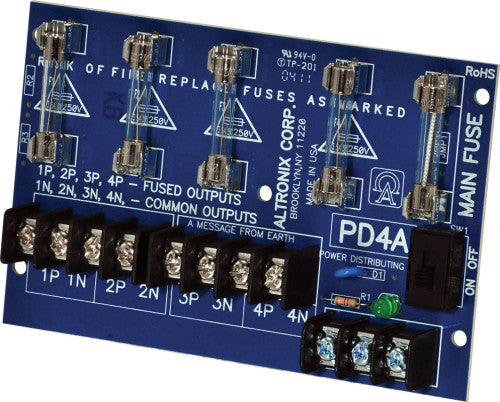

Altronix PD4 power distribution module is designed to convert a single AC or DC input into four (4) individually fuse protected outputs.
Main Features
- Power LED indicator.
Specifications
Specifications
Dimensions (approximate)
- 3.25"W x 5.21"L x 1"H (82.55 mm W x 1132.334 mm L x 25.4 mm H).
Input
- 28VAC or 28VDC max., up to 10A.
Output
- Four (4) fuse protected outputs.
- Fuses rated @ 3.5A/250V.
- Surge suppression.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
Weights (approximate)
| Product Weight | 0.15 Lbs. (0.07 kg). |
|---|---|
| Shipping Weight | 0.25 Lbs. (0.11 kg). |
