Brand: Altronix
|
SKU:
231071-DEMO

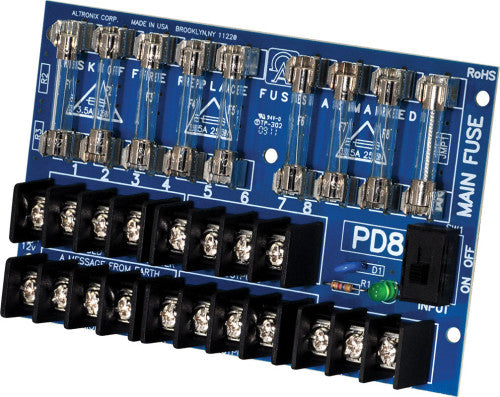

Altronix PD8 | Power Distribution Module, 8 Fused Outputs up to 28VAC/VDC, Board
Regular price
$37.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix PD8 | Power Distribution Module, 8 Fused Outputs up to 28V...
Regular price
$37.86
Unit price
Description
Description
Altronix PD8 power distribution module is designed to convert a single AC or DC input into eight (8) individually fuse protected outputs.
Main Features
- Power ON/OFF switch.
Specifications
Specifications
Dimensions (approximate)
- 3.25"W x 5.25"L x 1"H (82.55 mm W x 133.35 mm L x 25.4 mm H).
Input
- Up to 28VAC or 28VDC operation @ 12A max.
Outputs
- Eight (8) individually fused outputs.
- Fuses rated @ 3.5A/250V
- Surge suppression.
LED Indicators
- Power LED indicator.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
Weights (approximate)
| Product Weight | 0.25 Lbs. (0.11 kg). |
|---|---|
| Shipping Weight | 0.3 Lbs. (0.14 kg). |
