Brand: Altronix | SKU: 325437

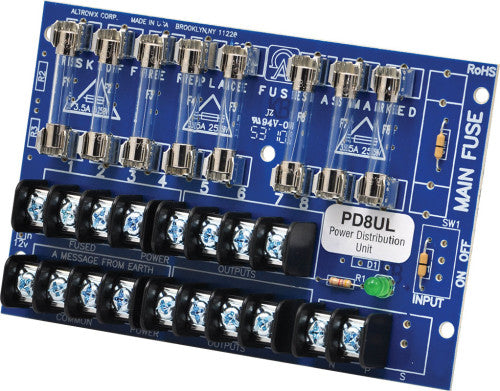

Altronix PD8UL | Power Distribution Module, 8 Fused Outputs up to 28VAC/VDC, Board

$37.55 $41.31

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix PD8UL UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into eight (8) individually fuse protected outputs.

Specifications

Dimensions (approximate)

3.25"W x 5.25"L x 1"H (82.55 mm W x 133.35 mm L x 25.4 mm H).

Input

Voltage Range: 12VDC or 24VDC, up to 10A or 24VAC or 28VAC, up to 12A.

Outputs

Eight (8) individually fused protected outputs.
2.5A per output max.
Total output current should not exceed max current rating of power supply employed.
Fuses are rated @ 3.5A/250V.

LED Indicators

Power LED indicator.

Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.

Weights (approximate)

Product Weight	0.25 Lbs. (0.11 kg).
Shipping Weight	0.3 Lbs. (0.14 kg).

Agency Listings

UL Listed For: Power Supplies for Fire Protective Signaling Systems (UL1481)	https://iq.ulprospector.com/en/profile?e=153662
cUL Listed For: Power Supplies for use with Burglar Alarm Systems (UL603)	https://iq.ulprospector.com/en/profile?e=2087
