Brand: Altronix | SKU: 380651

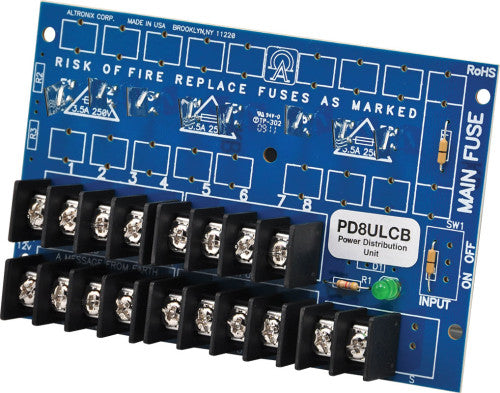

Altronix PD8ULCB | Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board

$39.17

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix PD8ULCB UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into eight (8) PTC protected Class 2 Rated powerlimited outputs.

Specifications

Dimensions (approximate)

3.25"W x 5.25"L x 1"H (82.55 mm W x 133.35 mm L x 25.4 mm H).

Input

12VDC or 24VDC, up to 10A or 24VAC or 28VAC, up to 12A.

Outputs

Eight (8) individually PTC protected outputs @ 2A per output max. current (total output current should not exceed max. current rating of power supply employed).
PTCs rated @ 2A/250V.

Visual Indicators

Power on green LED indicator.

Electrical

Operating temperature: 0 to 49° C (32 to 120° F).
Storage - 20 to 70° C ( - 4 to 158° F).
Relative Humidity 85% +/- 5%.

Weights (approximate)

Product Weight	0.25 Lbs. (0.11 kg).
Shipping Weight	0.3 Lbs. (0.14 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1606
cUL Listed For: Power Supplies for Fire Protective Signaling Systems (UL1481)	https://iq.ulprospector.com/en/profile?e=153662
