Altronix PDS16CB | Dual Input Power Distribution Module, 16 PTC Out...
Regular price
$120.20
Unit price
Brand: Altronix
|
SKU:
10304911
Regular price
$120.20
Unit price
Description
Description

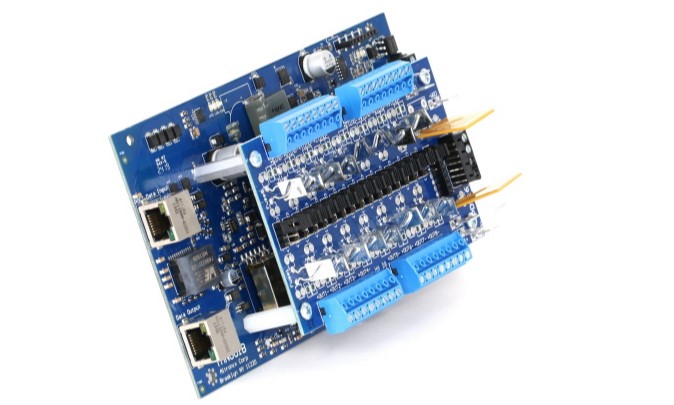

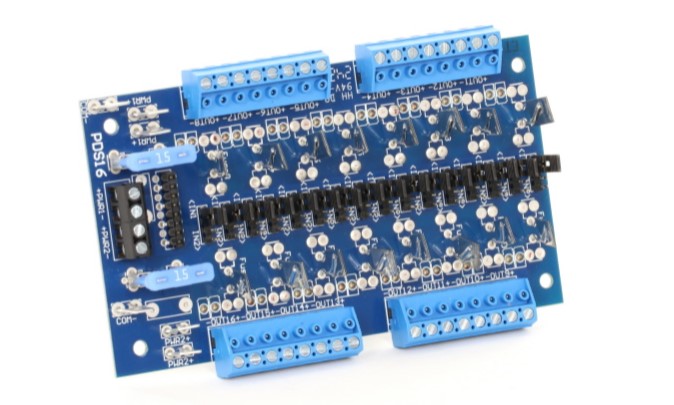

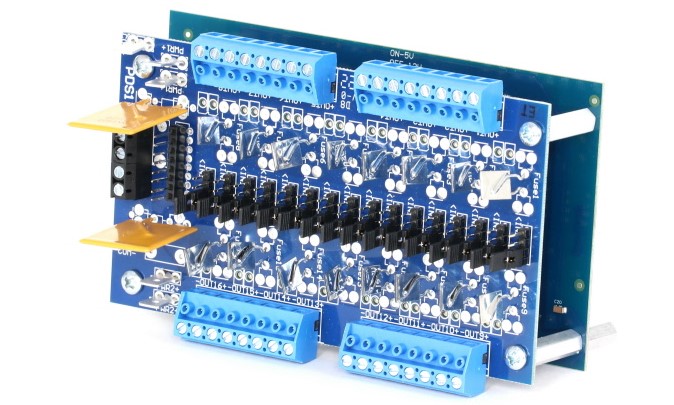

Altronix PDS16CB | Dual Input Power Distribution Module, 16 PTC Outputs
Altronix PDS16CB dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. The two Inputs can be either, both DC (e.g. 12VDC and 24VDC) or both AC (e.g. 16VAC and 24VAC). That power is distributed over a total of sixteen (16) PTC protected outputs. The spade connectors allow you to daisy chain multiple PDS16CB modules. This feature allows you to distribute the power over more outputs for larger systems.
Specifications
Specifications
Altronix - PDS16CB - Overview
- Input
- Voltage Range: 5VDC to 24VDC, up to 10A each or 16VAC to 28VAC, 60Hz, up to 10A each, 16A total input.
- Main PTC Rating
- 9A.
- Outputs
- PTC protected outputs rated @ 2A per output, Class 2 power-limited Total output 16A max.
- Do not exceed the individual power supply ratings.
- Any of the sixteen (16) fuse/PTC protected power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- PTCs are rated 2A each.
- Total output current is determined by the power supply(ies), not to exceed a maximum of 10A for each input.
- LED Indicators
- DC Output: Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red and Green).
- Features
- Multiple units may be daisy-chained to accommodate larger systems.
- Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
Altronix - PDS16CB - Specifications
| UNSPSC Code | 43211700.0 |
|---|---|
| Sales Category | Power Supply |
| Dimensions (approximate) | 1"W x 5.375"L x 3"H (25.4 mm W x 136.5 mm L x 76.2 mm H). |
Altronix - PDS16CB - Weights (approximate)
| Product Weight | 0.4 Lbs. (0.18 kg). |
|---|---|
| Shipping Weight | 0.5 Lbs. (0.23 kg). |
