Brand: Altronix
|
SKU:
243308

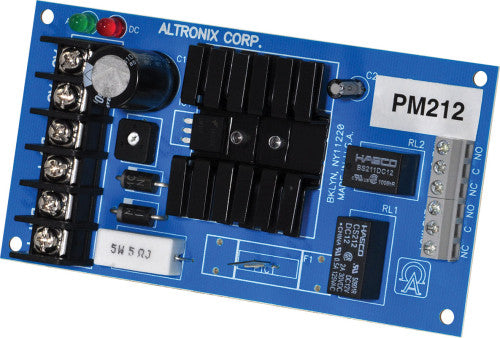

Altronix PM212 | Linear Power Supply/Charger, Single Output, 12VDC @ 1A, 16VAC, Board
Regular price
$43.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix PM212 | Linear Power Supply/Charger, Single Output, 12VDC ...
Regular price
$43.09
Unit price
Description
Description
Altronix PM212 supervised linear power supply/charger converts a low voltage AC input to a filtered and regulated continuous power-limited output.
Specifications
Specifications
Dimensions (approximate)
- 2.75"W x 5.25"L x 1.5"H (69.85 mm W x 133.35 mm L x 38.1 mm H).
Input
- Transformer requirements:
- - 16VAC/20VA for 12VDC output (Altronix Model # TP1620).
Output
- 12VDC output.
- 1A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails (zero voltage drop).
Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 1.1 Lbs. (0.5 kg). |
|---|---|
| Shipping Weight | 1.3 Lbs. (0.59 kg). |
