Brand: Altronix
|
SKU:
243309

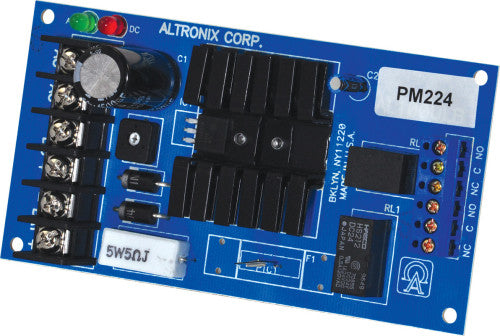

Altronix PM224 | Linear Power Supply/Charger, Single Output, 24VDC @ .75A, 24VAC, Board
Regular price
$43.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix PM224 | Linear Power Supply/Charger, Single Output, 24VDC ...
Regular price
$43.09
Unit price
Description
Description
Altronix PM224 supervised linear power supply/charger converts a low voltage AC input to a filtered and regulated continuous power-limited output.
Specifications
Specifications
Dimensions (approximate)
- 2.75"W x 5.25"L x 1.5"H (69.85 mm W x 133.35 mm L x 38.1 mm H).
Input
- 24VAC/40VA
Output
- 24VDC output
- 750mA continuous supply current
- Filtered and electronically regulated output
- Thermal and short circuit protection with auto reset
Battery Backup
- Battery leads included.
- Built-in charger for sealed lead acid or gel type batteries
- Automatic switchover to stand-by battery when AC Fails
- PTC battery protection.
Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Weights (approximate)
| Product Weight | 0.2 Lbs. (0.09 kg). |
|---|---|
| Shipping Weight | 0.3 Lbs. (0.136 kg). |
