Brand: Altronix
|
SKU:
943316-W

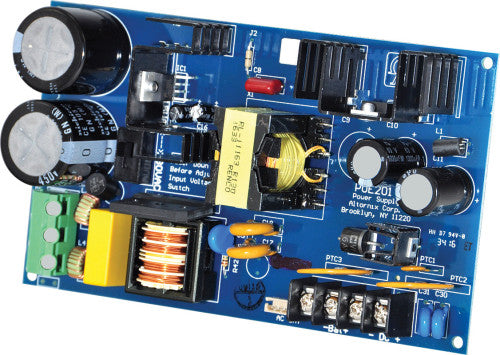

Altronix POE201 | 56VDC/120W Power Supply/Charger Board.
Regular price
$216.97
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix POE201 | 56VDC/120W Power Supply/Charger Board.
Regular price
$216.97
Unit price
Description
Description
Altronix PoE201 provides 120W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50Hz input into a 56VDC at 2.2A of continuous supply current (see specifications). It also features a built-in charger for sealed lead acid or gel type batteries.
Main Features
- Input voltage selection switch.
- Includes battery leads.
Specifications
Specifications
Dimensions (approximate)
- 7"W x 4"L x 1.375"H (177.8 mm W x 101.6 mm L x 34.9 mm H).
Input
- 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
Output
- 56VDC/120W output.
- 2.2A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Battery charging circuit: 48VDC, 300mA.
- Automatic switch over to stand-by battery when AC fails.
Temperature
- Operating (120W): - 30° C to 75° C ( - 22° F to 167° F).
- Storage: - 30° C to 85° C ( - 22° F to 185° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 61 BTU/Hr.
Weights (approximate)
| Product Weight | 0.7 Lbs. (0.32 kg). |
|---|---|
| Shipping Weight | 1.1 Lbs. (0.5 kg). |
