Altronix POE240 | 56VDC/240W Power Supply/Charger Board.
Regular price
$367.45
Unit price
Description
Description

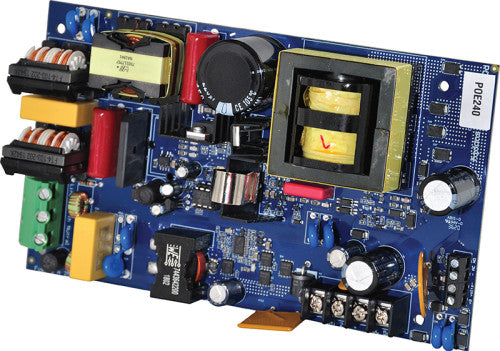

Altronix POE240 | 56VDC/240W Power Supply/Charger Board.
Altronix POE240 provides 240W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50/60Hz input into a 56VDC at 4.5A of continuous supply current (see specifications). It also features a built-in charger for LiFePO4 (Lithium Iron Phosphate), sealed lead acid or gel type batteries.
Altronix POE240 provides 240W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50/60Hz input into a 56VDC at 4.5A of continuous supply current (see specifications). It also features a built-in charger for LiFePO4 (Lithium Iron Phosphate), sealed lead acid or gel type batteries.
Altronix - POE240 - Features and Specifications
- INPUT
- 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
- OUTPUT
- 56VDC/240W output.
- 4.25A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Backup
- 24VDC charging circuit charges LiFePO4 (Lithium Iron Phosphate) or sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Includes battery leads.
Specifications
Specifications
Altronix - POE240 - Dimensions (approximate)
- 7.75"W x 4.5"L x 1.375"H (196.9 mm W x 114.3 mm L x 34.9 mm H).
Altronix - POE240 - Temperature
- Operating Temperature (De-Rating):
- 240W: – 30ºC to 55ºC (– 22ºF to 131F).
- 180W: – 30ºC to 65ºC (– 22ºF to 149ºF).
- 150W: – 30ºC to 75ºC (– 22ºF to 167ºF).
- Storage Temperature: – 30ºC to 85ºC (– 22ºF to 185ºF).
- Relative Humidity: 85% +/–5%.
- BTU/Hr (approx.): 61 BTU/Hr.
Altronix - POE240 - Specifications
| UNSPSC Code | 43222600 |
|---|
Altronix - POE240 - Weights (approximate)
| Product Weight: | 0.7 Lbs. (0.32 kg). |
|---|---|
| Shipping Weight | 1.1 Lbs. (0.5 kg). |
