Brand: Altronix
|
SKU:
390987

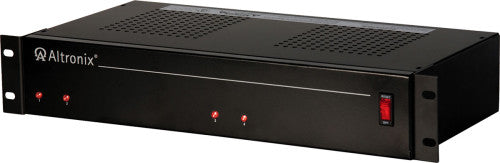

Altronix R1224DC16CB | Power Supply, 16 PTC Class 2 Outputs, 12/24VDC @ 18A, 115VAC 2U
Regular price
$736.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix R1224DC16CB | Power Supply, 16 PTC Class 2 Outputs, 12/24V...
Regular price
$736.52
Unit price
Description
Description
Altronix R1224DC16CB Rack Mount Power Supply provides 12VDC or 24VDC distributed via sixteen (16) PTC protected Class 2 Rated auto-resettable outputs for power-limited installation.
Main Features
- Illuminated power disconnect circuit breaker with manual reset.
- Removable terminal blocks w/locking screw flange.
- IEC 320 - 3-wire grounded line cord (detachable).
- 3U rack mount chassis for use in standard EIA 19" rack.
- Ease of installation saves time and eliminates costly labor.
Specifications
Specifications
Enclosure
- Modular 2U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
- Allow 1/2U space on top and bottom of the unit for ventilation.
Input
- 115VAC 60 Hz, 3.74A @ 12VDC or 6.26A @ 24VDC.
Output
- 12VDC @ 4.5A per channel of 4 outputs or 24VDC @ 4.5A per channel of 4 outputs. (2A max. per individual output).
- 18A total supply current.
- Sixteen (16) Class 2 Rated PTC protected power limited outputs.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
Temperature
- Operating temperature: 0° C to 49° C ( 32° F to 120° F).
- Storage temperature: -20° C to 70° C ( -4° F to 158° F )
- BTU/Hr. (approx.):
- 12VDC - 130 BTU/Hr.
- 24VDC - 260 BTU/Hr.
- System AC input VA requirement: 720 VA.
Visual Indicators
- Power LED indicators per group of 4 outputs.
Weights (approximate)
| Product Weight | 15.7 Lbs. (7.12 kg). |
|---|---|
| Shipping Weight | 17.3 Lbs. (7.85 kg). |
Agency Listings
| UL Listed For: Specialty Power Supply (UL1012) | https://iq.ulprospector.com/en/profile?e=140296 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.107.1, Audio, Video and Similar Equipment | https://iq.ulprospector.com/en/profile?e=140448 |
