Description
Description
Altronix R1224DC68220 | CCTV DC Power Supply/Charger, 8 Fuse Protected Outputs, 12VDC or 24VDC @ 6A.

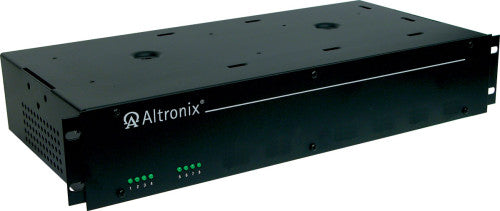

Altronix R1224DC68220 Rack Mount Power Supply provides 12VDC or 24VDC @ 6A via eight (8) fuse protected outputs for powering CCTV cameras, heaters, and other video accessories.
Altronix R1224DC68220 Rack Mount Power Supply provides 12VDC or 24VDC @ 6A via eight (8) fuse protected outputs for powering CCTV cameras, heaters, and other video accessories.
Altronix - R1224DC68220 - Features and Specifications
- INPUT
- 220VAC, 50/60Hz, 0.9A.
- OUTPUT
- Eight (8) fuse protected outputs.
- 12VDC or 24VDC @ 6A (0.75A per device, 3.5A max.)
- Outputs are rated @ 3.5A.
- Surge suppression.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Maximum charge current 0.7A.
Specifications
Specifications
Altronix - R1224DC68220 - Enclosure
- Modular 2U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
- Allow 1/2U space on top and bottom of the unit for ventilation.
Altronix - R1224DC68220 - Visual Indicators
- Eight (8) power LEDs.
Altronix - R1224DC68220 - Temperature
- Operating temperature: 0° C to 49° C ( 32° F to 120° F).
- Storage temperature: -20° C to 70° C ( -4° F to 158° F ).
- BTU/Hr. (approx.):
- 12VDC - 37 BTU/Hr.
- 24VDC - 75 BTU/Hr.
- Relative Humidity: 85% +/-5%
Altronix - R1224DC68220 - Specifications
| Type | POWER SUPPLY |
|---|---|
| UNSPSC Code | 39121031 |
Altronix - R1224DC68220 - Weights (approximate)
| Product Weight: | 18.15 Lbs. (8.23 kg). |
|---|---|
| Shipping Weight | 19.15 Lbs. (3.13 kg). |
