Brand: Altronix | SKU: 10216223

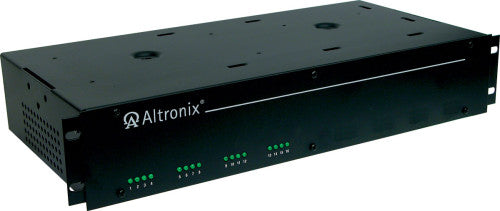

Altronix R2416220 | CCTV Power Supply, 16 Fused Outputs, 24/28VAC @ 8A, 220VAC, 2U

$556.90

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix R2416220 | CCTV Power Supply, 16 Fused Outputs, 24/28VAC @ 8A, 220VAC, 2U

R2416220 provides 24VAC or 28VAC distributed via sixteen (16) fuse protected outputs for powering CCTV cameras, heaters and other video accessories.

Altronix - R2416220 - Features and Specifications

INPUT
220VAC, 50/60Hz, 1.0A.
OUTPUT
Sixteen (16) fuse protected outputs.
24VAC @ 8A (200VA) supply current (0.5A per device, 3.5A max.) or 28VAC @ 7A (200VA) supply current (0.4375A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.

Specifications

Altronix - R2416220 - Enclosure

Modular 2U standard EIA 19" rack mount chassis.
Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
Allow 1/2U space on top and bottom of the unit for ventilation.

Altronix - R2416220 - Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VDC: 90 BTU/Hr.
28VDC: 90 BTU/Hr.
System AC input VA requirement: 220VA.
Features

Altronix - R2416220 - Specifications

Sales Category	POWER SUPPLY
UNSPSC Code	43211700
Agency Listing	CE Compliant

Altronix - R2416220 - Weights (approximate)

Product Weight:	16.15 Lbs. (7.33 kg).
Shipping Weight	17.15 Lbs. (7.78 kg).

Documents and Downloads
