Brand: Altronix
|
SKU:
367014

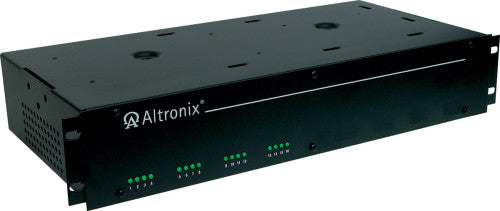

Altronix R2416600ULCB | CCTV Power Supply, 16 PTC Class 2 Outputs, 24/28VAC @ 25A, 115VAC, 2U
Regular price
$633.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix R2416600ULCB | CCTV Power Supply, 16 PTC Class 2 Outputs, ...
Regular price
$633.99
Unit price
Description
Description
R2416600ULCB provides 24VAC or 28VAC distributed via sixteen (16) PTC protected Class 2 Rated power limited outputs for powering CCTV cameras, heaters and other video accessories.
Main Features
- Sixteen (16) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- 3-wire grounded line cord.
- Removable terminal blocks with locking screw flange.
Specifications
Specifications
Enclosure
- Modular 2U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
- Allow 1/2U space on top and bottom of the unit for ventilation.
Input
- 115VAC, 50/60Hz, 6A.
Output
- Sixteen (16) PTC protected Class 2 Rated power limited outputs (auto-resettable).
- 24VAC @ 25A (600VA) supply current (0.7812A per device, 2.5A max.) or 28VAC @ 20A (560VA) supply current (0.625A per device, 2.5A max.).
- Outputs are rated @ 2.5A.
- Surge suppression.
Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.):
- 24VDC: 307 BTU/Hr.
- 28VDC: 287 BTU/Hr.
- System AC input VA requirement: 690VA.
Weights (approximate)
| Product Weight | 22.7 Lbs. (10.296 kg). |
|---|---|
| Shipping Weight | 23.7 Lbs. (10.75 kg). |
Agency Listings
| UL Listed For: Commercial CCTV Equipment (UL2044) | https://iq.ulprospector.com/en/profile?e=2863898 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment | https://iq.ulprospector.com/en/profile?e=2863922 |
Documents and Downloads
Documents and Downloads
- Altronix R2416600ULCB Data Sheet
- Altronix R2416600ULCB Data Sheet
- Altronix R2416600ULCB Fichas Tecnicas
- Altronix R2416600ULCB Installation Instructions
- Altronix R2416600ULCB Altronix_R2416600ULCB_CCTV_Power_Supply_Guia_de_Instalacion.pdf
- Altronix R2416600ULCB CAD Drawing
- Altronix R2416600ULCB Lifetime Warranty
