Brand: Altronix
|
SKU:
10386591

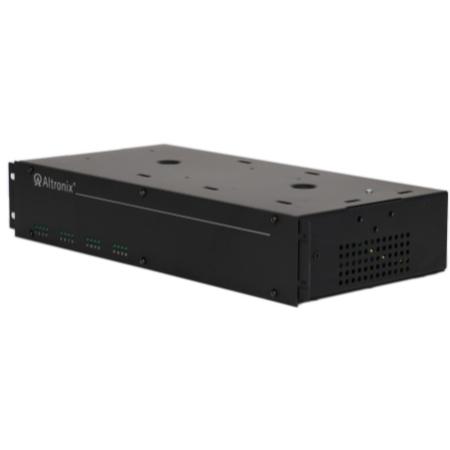

Altronix R2416CB220 | CCTV Power Supply, 16 PTC Class 2 Outputs, 24/28VAC @ 8A, 220VAC, 2U
Regular price
$556.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix R2416CB220 | CCTV Power Supply, 16 PTC Class 2 Outputs, 24...
Regular price
$556.90
Unit price
Description
Description
Altronix R2416CB220 | CCTV Power Supply, 16 PTC Class 2 Outputs, 24/28VAC @ 8A, 220VAC, 2U
24VAC @ 8A (200VA) supply current (0.5A per device, 2.5A max.) or 28VAC @ 7A (200VA) supply current (0.4375A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
28VDC: 90 BTU/Hr.
System AC input VA requirement: 220VA.
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
Input
220VAC, 50/60Hz, 1.0A.Output
Sixteen (16) PTC protected outputs (auto-resettable).24VAC @ 8A (200VA) supply current (0.5A per device, 2.5A max.) or 28VAC @ 7A (200VA) supply current (0.4375A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Electrical / Temperature:
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VDC: 90 BTU/Hr.28VDC: 90 BTU/Hr.
System AC input VA requirement: 220VA.
Features
Sixteen (16) power LEDs.Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
Overview
- R2416CB220 provides 24VAC or 28VAC distributed via sixteen (16) PTC protected outputs for powering CCTV cameras, heaters and other video accessories.
Specifications
Specifications
Altronix - R2416CB220 - Overview
- R2416CB220 provides 24VAC or 28VAC distributed via sixteen (16) PTC protected outputs for powering CCTV cameras, heaters and other video accessories.
Altronix - R2416CB220 - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - R2416CB220 - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | R2416CB220 |
| Item Description | CCTV Power Supply, 16 PTC Class 2 Outputs, 24/28VAC @ 8A, 220VAC, 2U |
| Agency Listings | CE Compliant |
| Sales Category | Power Supply |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 16.15 Lbs. |
| (7.33 kg). | Shipping Weight: |
| 17.15 Lbs. | (7.78 kg). |
