Brand: Altronix | SKU: 274097

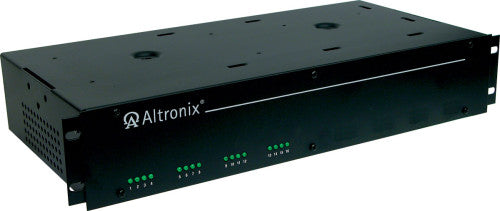

Altronix R2416ULCB | CCTV Power Supply, 16 PTC Class 2 Outputs, 24/28VAC @ 7A, 115VAC, 2U

Regular price $502.23
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

R2416ULCB provides 24VAC or 28VAC distributed via sixteen (16) PTC protected Class 2 Rated power limited outputs for powering CCTV cameras, heaters and other video accessories.

Main Features

  • Sixteen (16) power LEDs.
  • Illuminated master power disconnect circuit breaker with manual reset.
  • 3-wire grounded line cord.
  • Removable terminal blocks with locking screw flange.

Specifications

Enclosure

  • Modular 2U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
  • Allow 1/2U space on top and bottom of the unit for ventilation.

Input

  • 115VAC, 50/60Hz, 3A.

Output

  • Sixteen (16) PTC protected Class 2 Rated power limited outputs (auto-resettable).
  • 24VAC @ 7A (175VA) supply current (0.4375A per device, 2.5A max.) or 28VAC @ 6A (175VA) supply current (0.375A per device, 2.5A max.).
  • Outputs are rated @ 2.5A.
  • Surge suppression.

Electrical

  • Temperature:
  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 90 BTU/Hr.
  • System AC input VA requirement: 345VA.

Weights (approximate)

Product Weight16.15 Lbs. (7.33 kg).
Shipping Weight17.15 Lbs. (7.78 kg).

Agency Listings

UL Listed For: Commercial CCTV Equipment (UL2044)https://iq.ulprospector.com/en/profile?e=2863898
cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipmenthttps://iq.ulprospector.com/en/profile?e=2863922
