Brand: Altronix
|
SKU:
10216221

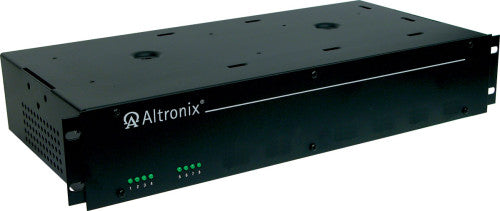

Altronix R248600CB | CCTV Power Supply, 8 PTC Class 2 Outputs, 24/28VAC @ 28A, 115VAC, 2U
Regular price
$606.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix R248600CB | CCTV Power Supply, 8 PTC Class 2 Outputs, 24/2...
Regular price
$606.16
Unit price
Description
Description
R248600CB provides 24VAC or 28VAC distributed via eight (8) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Main Features
- Eight (8) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- 3-wire grounded line cord.
- Removable terminal blocks with locking screw flange.
- Spare fuses provided.
Specifications
Specifications
Enclosure
- Modular 2U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
- Allow 1/2U space on top and bottom of the unit for ventilation.
Input
- 115VAC, 50/60Hz, 6A.
Output
- Eight (8) PTC protected auto-resettable outputs.
- 24VAC @ 28A (600VA) supply current (3.5A per device, 2.5A max.) or 28VAC @ 25A (600VA) supply current (3.125A per device, 2.5A max.).
- Outputs are rated @ 2.5A.
- Surge suppression.
Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.):
- 24VDC: 307 BTU/Hr.
- 28VDC: 287 BTU/Hr.
- System AC input VA requirement: 690VA.
Weights (approximate)
| Product Weight | 23 Lbs. (10.43 kg). |
|---|---|
| Shipping Weight | 24 Lbs. (10.89 kg). |
