Brand: Altronix | SKU: 389761

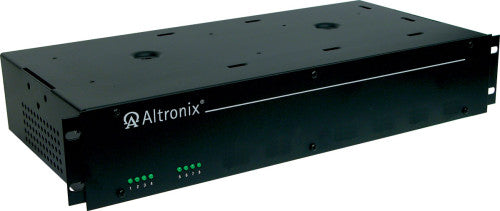

Altronix R248ULCBI | CCTV Power Supply, 8 PTC Class 2 Isolated Outputs, 24VAC @ 12.5A, 115VAC, 2U

$581.06

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

R248ULCBi provides 24VAC distributed via eight (8) isolated PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

Eight (8) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.

Specifications

Enclosure

Modular 2U standard EIA 19" rack mount chassis.
Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
Allow 1/2U space on top and bottom of the unit for ventilation.

Input

115VAC, 50/60Hz, 2.7A.

Output

Eight (8) isolated PTC protected outputs (auto-resettable).
24VAC @ 12.5A (300VA) supply current (1.56A per device, 2.5A max.)
Outputs are rated @ 2.5A.
Surge suppression.

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 114 BTU/Hr.
System AC input VA requirement: 310.5VA.

Weights (approximate)

Product Weight	17.2 Lbs. (7.8 kg).
Shipping Weight	18.2 Lbs. (8.26 kg).

Agency Listings

UL Listed For: Commercial CCTV Equipment (UL2044)	https://iq.ulprospector.com/en/profile?e=2863898
cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment	https://iq.ulprospector.com/en/profile?e=2863922

Documents and Downloads
