Brand: Altronix | SKU: 553023

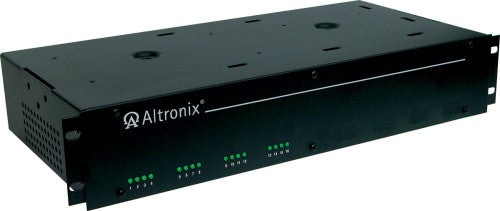

Altronix R615DC1016CB | CCTV Power Supply, 16 PTC Outputs, 6-15VDC @ 10A, 115VAC, 2U

Regular price $563.27
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

R615DC1016CB provides 6-15VDC distributed via sixteen (16) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

  • Sixteen (16) power LEDs.
  • Illuminated master power disconnect circuit breaker with manual reset.
  • 3-wire grounded line cord.
  • Removable terminal blocks with locking screw flange.
  • Spare fuses provided.

Specifications

Enclosure

  • Modular 2U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
  • Allow 1/2U space on top and bottom of the unit for ventilation.

Input

  • 115VAC, 50/60Hz, 1.9A.

Output

  • Sixteen (16) PTC protected outputs (auto-resettable).
  • 6-15VDC @ 10A total output current. (0.625A per device, 2.5A max.)
  • Outputs are rated @ 2.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.

Electrical

  • Temperature:
  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 46-77 BTU/Hr.
  • System AC input VA requirement: 218.5VA.

Weights (approximate)

Product Weight17.15 Lbs. (7.78 kg).
Shipping Weight18.15 Lbs. (8.23 kg).

Documents and Downloads
