Brand: Altronix
|
SKU:
304871

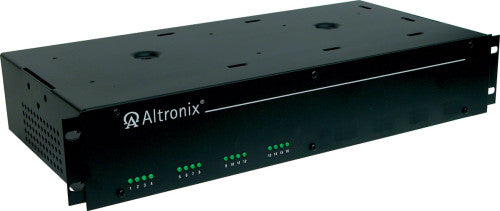

Altronix R615DC416UL | CCTV Power Supply, 16 PTC Class 2 Outputs, 6-15VDC @ 4A, 115VAC, BC100 Enclosure
Regular price
$464.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix R615DC416UL | CCTV Power Supply, 16 PTC Class 2 Outputs, 6...
Regular price
$464.08
Unit price
Description
Description
R615DC416UL provides 6-15VDC distributed via sixteen (16) fuse protected outputs for powering CCTV cameras, heaters and other video accessories.
Main Features
- Sixteen (16) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- 3-wire grounded line cord.
- Removable terminal blocks with locking screw flange.
- Spare fuses provided.
Specifications
Specifications
Enclosure
- Modular 2U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 3.25"H x 8.5"D (486 mm W x 83 mm H x 216 mm D).
- Allow 1/2U space on top and bottom of the unit for ventilation.
Input
- 115VAC, 50/60Hz, 0.9A.
Output
- Sixteen (16) fuse protected outputs.
- 6-15VDC @ 4A total output current. (0.25A per device, 3.5A max.)
- Outputs are rated @ 3.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 12-31 BTU/Hr.
- System AC input VA requirement: 103.5VA.
Weights (approximate)
| Product Weight | 13.75 Lbs. (6.24 kg). |
|---|---|
| Shipping Weight | 14.75 Lbs. (6.69 kg). |
Agency Listings
| UL Listed For: Commercial CCTV Equipment (UL2044) | https://iq.ulprospector.com/en/profile?e=2863898 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment | https://iq.ulprospector.com/en/profile?e=2863922 |
