Brand: Altronix | SKU: 276547

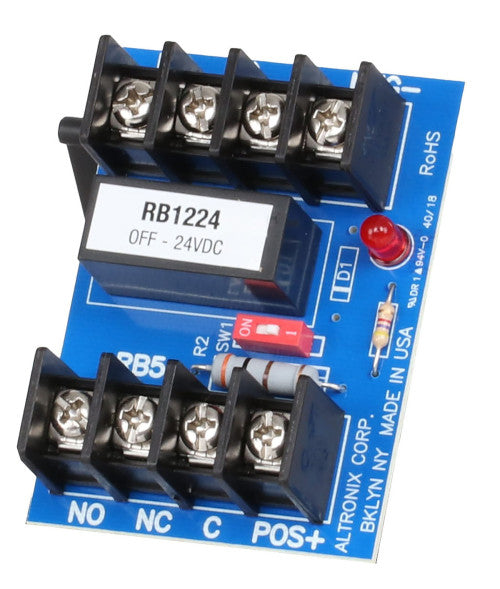

Altronix RB1224 | Relay Module, 12/24VDC, DPDT Contacts @ 5A - 220VAC/28VDC

$17.14

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

RB1224 Relay Module can be utilized in many different applications such as: Dry Contact, Line Seizure, Polarity Reversal, Latching Dry Contact, and much more. The RB1224 is snap track mountable.

Specifications

Dimensions (approximate)

2"W x 2.75"L x 1"H (50.8 mm W x 69.85 mm L x 25.4 mm H).

Input Voltage

12VDC or 24VDC operation.
Current draw: 75mA.

Contact Rating

DPDT contacts rated at 5A/220VAC or 28VDC.

LED Indicators

Relay status LED.
Remote LED status output.

Temperature

Operating temperature: -25ºC to 55ºC (-13ºF to 131ºF).
Storage temperature: -25ºC to 70ºC (-13ºF to 158ºF).
Relative Humidity 85% +/-5%.

Weights (approximate)

Product Weight	0.15 Lbs. (0.06 kg).
Shipping Weight	0.25 Lbs. (0.11 kg).

Documents and Downloads
