Brand: Altronix
|
SKU:
266215
Altronix RB610 | Relay Module, Breakaway, 6 - 12/24VDC, SPDT @ 10A - 120VAC/28VDC
Regular price
$46.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix RB610 | Relay Module, Breakaway, 6 - 12/24VDC, SPDT @ 10A ...
Regular price
$46.99
Unit price
Description
Description

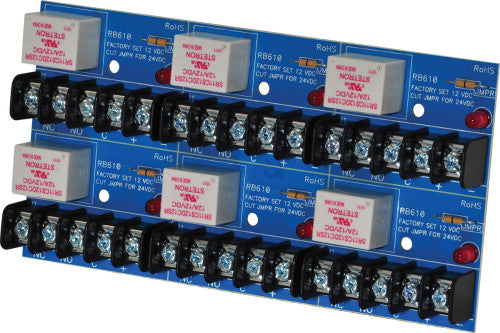

Each cluster contains six (6) relay modules that can easily be separated if desired.
Specifications
Specifications
Dimensions (approximate)
- 2"W x 2.75"L x 1"H (50.8 mm W x 69.85 mm L x 25.4 mm H).
Input Voltage
- 12VDC or 24VDC selectable operation.
- Current draw: 50mA.
Contact Rating
- 10A/120VAC or 28VDC SPDT contacts.
Temperature
- Operating -25ºC to 55ºC ( -13ºF to 131ºF).
- Storage -25ºC to 70ºC ( -13ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- System AC input VA requirement:
- 12VDC: 6VA.
- 24VDC: 12VA.
Weights (approximate)
| Product Weight | 0.6 Lbs. (0.27 kg). |
|---|---|
| Shipping Weight | 0.7 Lbs. (0.32 kg). |
