Brand: Altronix
|
SKU:
231059

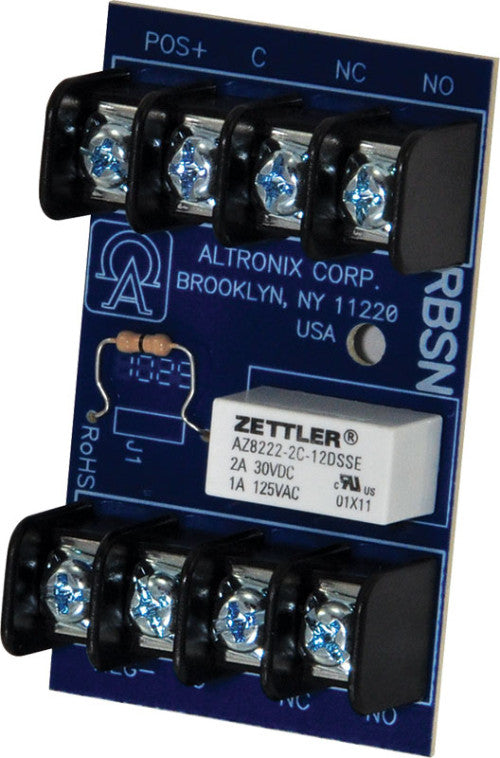

Altronix RBSN | Relay Module, 12/24VDC, DPDT Contacts @ 1A - 120VAC or 2A - 28VDC
Regular price
$15.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix RBSN | Relay Module, 12/24VDC, DPDT Contacts @ 1A - 120VAC...
Regular price
$15.83
Unit price
Description
Description
RBSN relay module is designed for continuous duty. This rugged, reliable and dependable relay will handle many switching application.
Specifications
Specifications
Dimensions (approximate)
- 2"W x 2.75"L x 1"H (50.08 mm W x 69.85 mm L x 25.5 mm H).
Input Voltage
- 12VDC or 24VDC operation.
- Current draw: 15mA.
Contact Rating
- 1A/120VAC or 2A/28VDC DPDT contacts.
Temperature
- Operating -25ºC to 55ºC ( -13ºF to 131ºF).
- Storage -25ºC to 70ºC ( -13ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- System AC input VA requirement:
- 12VDC: 1.8VA.
- 24VDC: 3.6VA.
Weights (approximate)
| Product Weight | 0.15 Lbs. (0.06 kg). |
|---|---|
| Shipping Weight | 0.25 Lbs. (0.11 kg). |
