Brand: Altronix
|
SKU:
730592

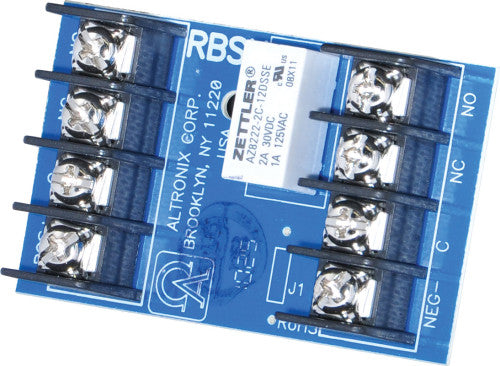

Altronix RBSNP | Relay Module, 12VDC, DPDT Contacts @ 2A/120VAC or 2A/28VDC, Polarized
Regular price
$17.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix RBSNP | Relay Module, 12VDC, DPDT Contacts @ 2A/120VAC or ...
Regular price
$17.14
Unit price
Description
Description
RBSNP polarized relay module is designed for continuous duty. This rugged, reliable and dependable relay will handle many switching application.
Specifications
Specifications
Dimensions (approximate)
- 1.625"W x 2.75"L x 0.875"H (41.275 mm W x 69.9 mm L x 22.225 mm H).
Input Voltage
- 12VDC operation.
- Current draw: 15mA.
- Polarity sensitive input.
Contact Rating
- 2A/120VAC or 2A/28VDC DPDT contacts.
Temperature
- Operating -25ºC to 55ºC ( -13ºF to 131ºF).
- Storage -25ºC to 70ºC ( -13ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
- System AC input VA requirement:
- 12VDC: 1.8VA.
Weights (approximate)
| Product Weight | 0.15 Lbs. (0.06 kg). |
|---|---|
| Shipping Weight | 0.25 Lbs. (0.11 kg). |
