Brand: Altronix
|
SKU:
518910

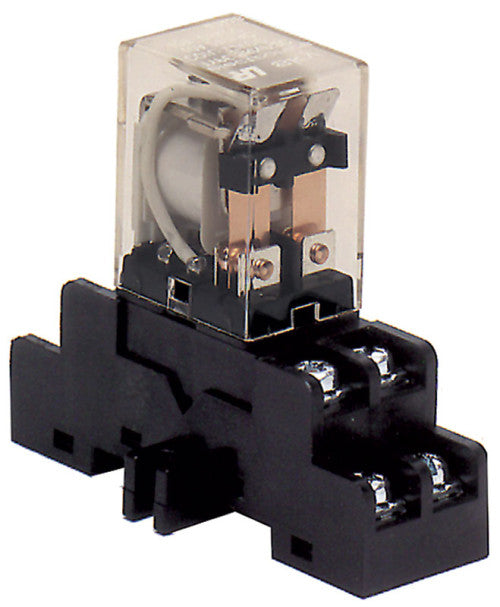

Altronix RDC12 | Relay and Base Module, 12VDC, DPDT Contacts @ 10A - 220VAC/28VDC, DIN Rail Mountable
Regular price
$27.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix RDC12 | Relay and Base Module, 12VDC, DPDT Contacts @ 10A ...
Regular price
$27.41
Unit price
Description
Description
Altronix RDC12 DIN rail mountable relay is designed for continuous duty. This rugged and dependable relay will handle any switching application.
Specifications
Specifications
Dimensions (approximate)
- 2.375"W x 3.125"L x 1.375"H (86 mm W x 79.4 mm L x 35 mm H).
Input Voltage
- 12VDC operation.
- Current draw: 86mA.
Contact Rating
- 10A/220VAC or 28VDC DPDT contacts.
Temperature
- Operating - 25° C to 55° C ( - 13° F to 131° F).
- Storage - 25° C to 70° C ( - 13° F to 158° F).
- Relative Humidity 85% +/- 5%.
Weights (approximate)
| Product Weight | 0.1 Lbs. (0.05 kg). |
|---|---|
| Shipping Weight | 0.15 Lbs. (0.07 kg). |
