Altronix S202M-C0.5 | 4-Door Altronix/LiftMaster Access and Power I...
Description
Description

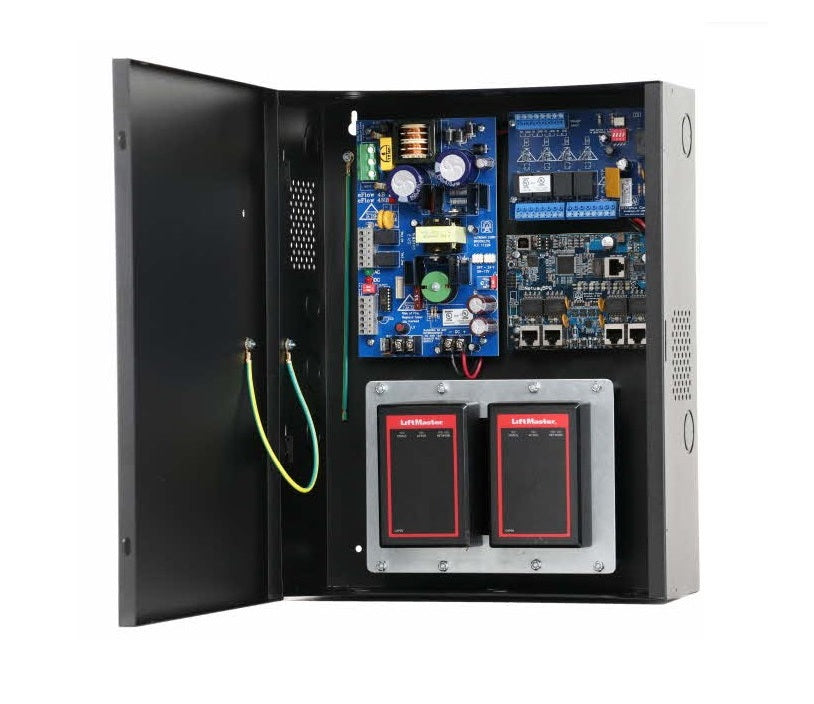

Altronix TLM400K1D consists of TM400 enclosure with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger and four (4) PTC protected output access control module and 5-Port PoE Hardened Switch. This kit also accommodates LiftMaster Smart Access 2-Door Controller (CAP2D) modules for up to four (4) doors in a single enclosure. One (1) LMBK2 mounting bracket for LiftMaster CAP2D is factory installed. Trove simplifies board layout and wire management, reduces installation time and labor costs.
Altronix - TLM400K1D - Features
- Five (5) 10/100/1000 Mbps ports.
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5 or better structured cable.
- Distance: up to 100m.
- Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
- Individual PoE On LEDs for each port.
- Individual IP Link status, 10/100Base-T/active LEDs for each port.
- Compact Enclosure for Altronix power distribution and Mercury Boards
- Double knockouts (accommodate 0.75” and 1” conduit).
Altronix - TLM400K1D - Features
| Altronix S202M-C0.5 Data Sheet | Click to View |
|---|
Specifications
Specifications
Altronix - TLM400K1D - Input
- Voltage: 120VAC, 60Hz, 3.5A.
- Input Fuse: 5A/250V
- Voltage: 12VDC or 24VDC from AL600ULXB.
Altronix - TLM400K1D - Outputs
- Voltage: 24VDC.
- Current: 4A continuous.
- Other: Overvoltage protection. Filtered and regulated.
- Maximum Power: Four (4) 10/100/1000 Mbps, PoE/PoE+ (rated up to 30W)
Altronix - TLM400K1D - Battery Charging
- Capacity: Up to 40AH/65AH (requires separate enclosure).
- Type: Sealed lead acid or gel type.
- Failover: Upon AC loss, instantaneous.
Altronix - TLM400K1D - Specifications
| Dimensions | 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D). |
|---|---|
| Product Weight | 8.55 Lbs. (3.88 kg). |
| Operating | 0° C to 49° C (32° F to 120° F). |
| Storage | - 20° C to 70° C ( - 4° F to 158° F). |
| Relative Humidity | 85% +/- 5%. |
| BTU/Hr. (approx.) | 90 BTU/Hr. |
