Brand: Altronix
|
SKU:
392962

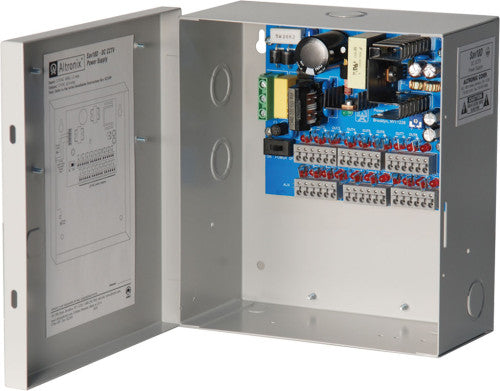

Altronix SAV18D | CCTV Power Supply, 18 PTC Class 2 Outputs, 12VDC @ 5A, 115VAC or 230VAC, BC100 Enclosure
Regular price
$208.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix SAV18D | CCTV Power Supply, 18 PTC Class 2 Outputs, 12VDC ...
Regular price
$208.52
Unit price
Description
Description
Sav18D Power Supply provides 12VDC distributed via eighteen (18) Class 2 Rated PTC protected power limited outputs for powering surveillance cameras.
Main Features
- Power LEDs.
- Field installable 3-wire line cord with integral strain relief.
- Unit maintains camera synchronization.
- Ease of installation saves time & eliminates costly labor.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 115VAC60Hz, 1.5A or 230VAC 50Hz, 0.75A.
Output
- 12VDC @ 5A total output current (0.27A per device, 2.5A max.).
- Eighteen (18) Class 2 Rated PTC protected power limited auto-resettable outputs.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 31 BTU/Hr.
- System AC input VA requirement: 172.5VA.
Weights (approximate)
| Product Weight | 4.8 Lbs. (2.18 kg). |
|---|---|
| Shipping Weight | 5.3 Lbs. (2.4 kg). |
Agency Listings
| UL Listed For: Commercial CCTV Equipment (UL2044) | https://iq.ulprospector.com/en/profile?e=2863898 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.205-M1983, Signal Equipment | https://iq.ulprospector.com/en/profile?e=2863922 |
