Brand: Altronix | SKU: 231019

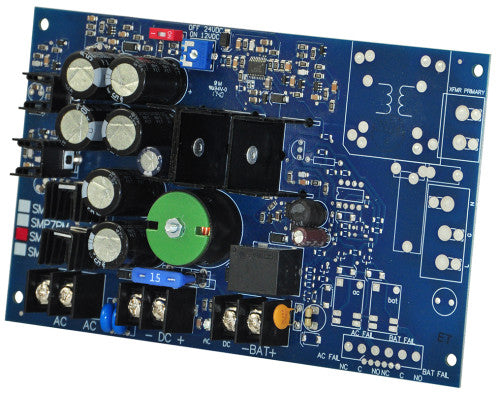

Altronix SMP10 | Power Supply Charger, Single Output, 12/24VDC @ 10A, 24VAC, Board

$202.16

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

SMP10 power supply/charger converts low voltage AC input into 12VDC or 24VDC @ 10A of continuous supply current (refer to specifications). This general purpose power supply has a wide range of applications for access control, security and CCTV system accessories that require additional power (Voltage Output/Transformer Selection Table).

Specifications

Dimensions (approximate)

7"W x 4.25"L x 1.25"H (177.8 mm W x 107.9 mm L x 31.75 mm H).

Input

Input 24/28VAC.
(Voltage Output/Transformer Selection Table).

Output

12VDC or 24VDC selectable output.
10A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Zero voltage drop when switching over to battery backup.

Visual Indicators

AC input and DC output LED indicators.

Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C (-4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr. (approx.):
12VDC: 61 BTU/Hr.
24VDC: 123 BTU/Hr.

Weights (approximate)

Product Weight	1.3 Lbs. (0.59 kg).
Shipping Weight	1.5 Lbs. (0.68 kg).

Documents and Downloads
