Brand: Altronix
|
SKU:
10216216

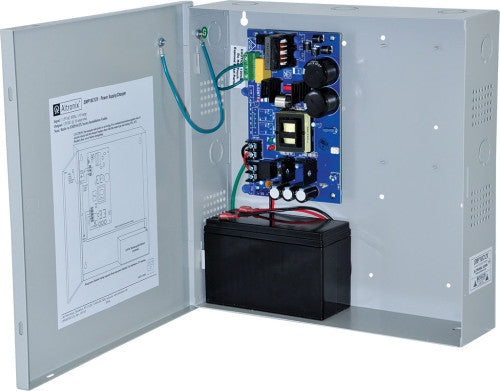

Altronix SMP10C12X220 | Power Supply Charger, Single Output, 12VDC @ 10A, 220VAC, BC300 Enclosure
Regular price
$345.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix SMP10C12X220 | Power Supply Charger, Single Output, 12VDC ...
Regular price
$345.83
Unit price
Description
Description
Altronix SMP10C12X220 | Power Supply Charger, Single Output, 12VDC @ 10A, 220VAC, BC300 Enclosure
SMP10C12X220 power supply/charger converts a 220VAC, 50/60Hz input into a regulated 12VDC output @ 10A continuous supply current.
SMP10C12X220 power supply/charger converts a 220VAC, 50/60Hz input into a regulated 12VDC output @ 10A continuous supply current.
Altronix - SMP10C12X220 - Features and Specifications
- INPUT
- Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.8A.
- OUTPUT
- 12VDC output.
- 10A supply current.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Zero voltage drop when switching over to battery backup.
Specifications
Specifications
Altronix - SMP10C12X220 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - SMP10C12X220 - Visual Indicators
- AC input and DC output LED indicators.
Altronix - SMP10C12X220 - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 61 BTU/Hr.
- System AC input VA requirement: 176VA.
Altronix - SMP10C12X220 - Specifications
| Sales Category | POWER SUPPLY |
|---|---|
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - SMP10C12X220 - Weights (approximate)
| Product Weight: | 8.4 Lbs. (3.81 kg). |
|---|---|
| Shipping Weight | 9.4 Lbs. (4.26 kg). |
