Brand: Altronix
|
SKU:
10386563

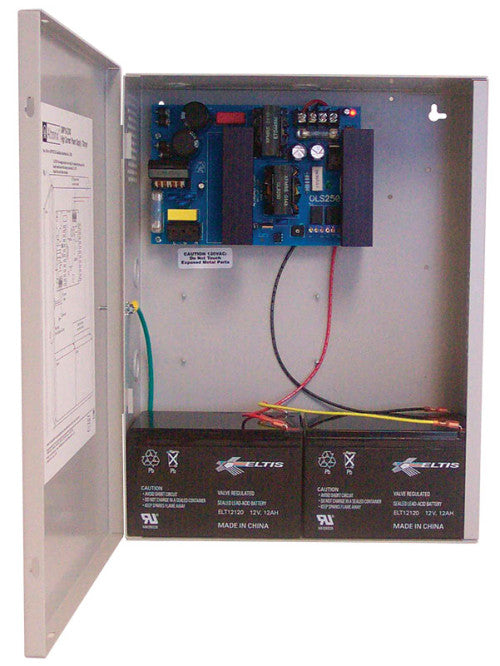

Altronix SMP10C24X220 | Power Supply Charger, Single Output, 24VDC @ 10A, 220VAC, BC300 Enclosure
Regular price
$350.92
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix SMP10C24X220 | Power Supply Charger, Single Output, 24VDC ...
Regular price
$350.92
Unit price
Description
Description
Altronix SMP10C24X220 | Power Supply Charger, Single Output, 24VDC @ 10A, 220VAC, BC300 Enclosure
10A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Zero voltage drop when switching over to battery backup.
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 122 BTU/Hr.
System AC input VA requirement: 396VA.
Accommodates up to two (2) 12VDC/7AH Batteries.
Dimensions
13"W
x
13.5"H
x
3.25"D
(330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.
11.15 Lbs.
(5.06 kg).
Shipping Weight:
12.15 Lbs.
(5.51 kg).
Input
Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.8A.Output
24VDC output.10A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.Zero voltage drop when switching over to battery backup.
Visual Indicators
AC input and DC output LED indicators.Temperature
Operating: 0° C to 49° C (32° F to 120° F).Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 122 BTU/Hr.
System AC input VA requirement: 396VA.
Enclosure:
Wall mount enclosure for indoor use.Accommodates up to two (2) 12VDC/7AH Batteries.
Dimensions
13"W
x
13.5"H
x
3.25"D
(330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.
Weights (approximate):
Product Weight:11.15 Lbs.
(5.06 kg).
Shipping Weight:
12.15 Lbs.
(5.51 kg).
Overview
- SMP10C24X220 power supply/charger converts a 220VAC, 50/60Hz input into a regulated 24VDC output @ 10A continuous supply current.
Specifications
Specifications
Altronix - SMP10C24X220 - Overview
- SMP10C24X220 power supply/charger converts a 220VAC, 50/60Hz input into a regulated 24VDC output @ 10A continuous supply current.
Altronix - SMP10C24X220 - Product Categories
- Security
- Access Control
- Power Supplies
Altronix - SMP10C24X220 - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | SMP10C24X220 |
| Item Description | Power Supply Charger, Single Output, 24VDC @ 10A, 220VAC, BC300 Enclosure |
| Sales Category | Power Supply |
| UNSPSC Code | 43211700 |
| Weights (approximate): | - |
| Product Weight: | 11.15 Lbs. |
| (5.06 kg). | Shipping Weight: |
| 12.15 Lbs. | (5.51 kg). |
