Brand: Altronix
|
SKU:
552924
Altronix SMP10PM12P4CB | Power Supply Charger, 4 PTC Outputs, 12VDC @ 10A, 115VAC, Supervision, BC300 Enclosure
Regular price
$357.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix SMP10PM12P4CB | Power Supply Charger, 4 PTC Outputs, 12VDC...
Regular price
$357.29
Unit price
Description
Description
Altronix SMP10PM12P4CB | Power Supply Charger, 4 PTC Outputs, 12VDC @ 10A, 115VAC, Supervision, BC300 Enclosure
SMP10PM12P4CB is a multi-output power supply/charger that converts a 115VAC/60Hz input into four (4) 12VDC outputs.
SMP10PM12P4CB is a multi-output power supply/charger that converts a 115VAC/60Hz input into four (4) 12VDC outputs.
Altronix - SMP10PM12P4CB - Features and Specifications
- INPUT
- Input 115VAC, 60Hz, 1.45A.
- OUTPUT
- 12VDC output.
- 10A supply current.
- Four (4) PTC protected outputs (auto-resettable).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Zero voltage drop when switching over to battery backup.
- Supervision
- AC fail supervision (form "C" contacts).
- Battery presence and low battery supervision (form "C" contacts).
Specifications
Specifications

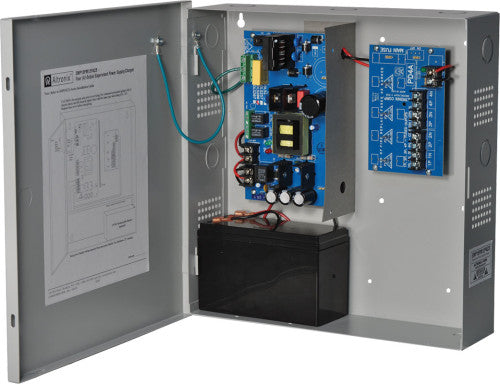

Altronix - SMP10PM12P4CB - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - SMP10PM12P4CB - Visual Indicators
- AC input and DC output LED indicators.
Altronix - SMP10PM12P4CB - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 61 BTU/Hr.
- System AC input VA requirement: 166.75VA.
Altronix - SMP10PM12P4CB - Specifications
| Amps | 2.1 TO 3.0 |
|---|---|
| Product Type | BOXED POWER SUPPLY |
| Lock | KEY LOCK |
| Sales Category | ELECTRIC BOXED POWER SUPPLY |
| Output Voltage | 12V DC |
| UNSPSC Code | 43211700 |
Altronix - SMP10PM12P4CB - Weights (approximate)
| Product Weight: | 11.05 Lbs. (5.01 kg). |
|---|---|
| Shipping Weight | 12.05 Lbs. (5.47 kg). |
