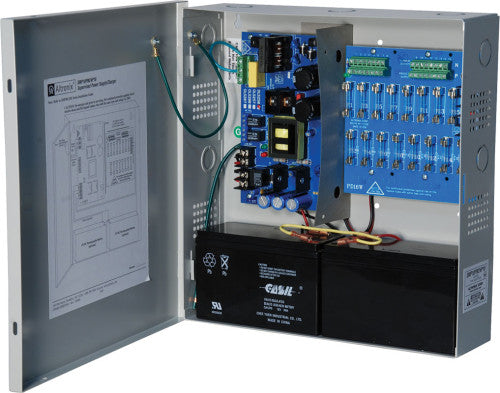

Altronix SMP10PM24P16 | Power Supply Charger, 16 Fused Outputs, 24VDC @ 10A, 115VAC, Supervision, BC300 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
• 1/2" and 3/4" combination knockouts.

Input

• Input 115VAC, 60Hz, 2.7A.

Output

• 24VDC output.
• 10A supply current.
• Sixteen (16) fuse protected outputs.
• Outputs are rated @ 3.5A.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Zero voltage drop when switching over to battery backup.

Supervision

• AC fail supervision (form "C" contacts).
• Battery presence and low battery supervision (form "C" contacts).

Visual Indicators

• AC input and DC output LED indicators.

Weights (approximate)
