Brand: Altronix
|
SKU:
10286914
Altronix SMP10WP12 | High Current Outdoor DC Power Supply/Charger
Regular price
$598.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix SMP10WP12 | High Current Outdoor DC Power Supply/Charger
Regular price
$598.65
Unit price
Description
Description
Altronix SMP10WP12 | High Current Outdoor DC Power Supply/Charger
Current: 10A continuous supply current.
Other: Short circuit and thermal overload protection.
Filtered and regulated.
Failover: Upon AC loss, instantaneous.
DC Output: Powered.
Storage: -40ºC to 70ºC (-40ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
Input
Voltage: 115VAC, 60Hz, 1.9A.Outputs
Voltage: 12VDC.Current: 10A continuous supply current.
Other: Short circuit and thermal overload protection.
Filtered and regulated.
Battery Backup (not included, separate enclosure is required)
Type: Sealed lead acid or gel type.Failover: Upon AC loss, instantaneous.
Indicators (LED)
Input: Input voltage is present.DC Output: Powered.
Electrical / Temperature:
Operating: -40ºC to 60ºC (-40ºF to 140ºF).Storage: -40ºC to 70ºC (-40ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 37 BTU/Hr.Overview

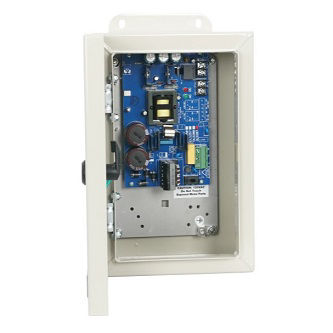

- Altronix SMP10WP12 DC Outdoor Power Supply/Charger provides 12VDC and is designed to be conveniently located where power is required. 16 GA steel enclosure finished with heat fused polyester powder is NEMA 4/4X, IP66-11 Rated for outdoor use. It features turn lock and integral flanges to simplify wall or pole mounting.
Specifications
Specifications
Altronix - SMP10WP12 - Overview
- Altronix SMP10WP12 DC Outdoor Power Supply/Charger provides 12VDC and is designed to be conveniently located where power is required. 16 GA steel enclosure finished with heat fused polyester powder is NEMA 4/4X, IP66-11 Rated for outdoor use. It features turn lock and integral flanges to simplify wall or pole mounting.
Altronix - SMP10WP12 - Specifications
| Brand Name | Altronix |
|---|---|
| Manufacturer Part Number | SMP10WP12 |
| Item Description | High Current Outdoor DC Power Supply/Charger |
| Agency Listings | CE Compliant |
| Weights (approximate): | - |
| Product Weight: | 9.9 Lbs. |
| (4.5 kg). | Shipping Weight: |
| 11 Lbs. | (5 kg). |
