Brand: Altronix | SKU: 373258

Altronix SMP312C | Power Supply Charger, Single Output, 6/12/24VDC @ 2.5A, 16-28VAC, Board, Includes BT124 and TP1640

$121.49

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

These switching power supply/charger kits have a wide range of applications including: access control, security and CCTV system accessories that require additional power.

Main Features

Extremely compact design.
Includes battery leads.
Snap Trac compatible (order Altronix model number ST3).

Specifications

Dimensions (approximate)

0"W x 0"L x 0"H (0 mm W x 0 mm L x 0 mm H).

Output

12VDC output.
2.5A continuous supply current.

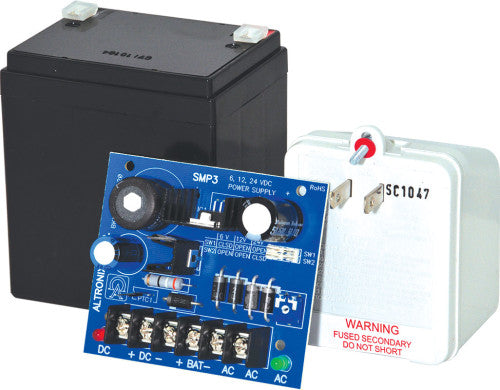

Kit includes: power supply, 12VDC 4AH rechargeable battery and 16.5VAC 40VA Class 2 Rated plug-in transformer.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Battery short circuit protection (circuit breaker).

Visual Indicators

AC input and DC output LED indicators.

Temperature

Operating temperature: -20° C to 49° C ( -4° F to 120.2° F).
Storage temperature: -20° to 70° C ( -4° to 158° F)
BTU/Hr. (approx.):
6VDC: 8 BTU/Hr.
12VDC: 15 BTU/Hr.
24VDC: 31 BTU/Hr.
System AC input VA requirement:
6VDC/12VDC: 55.2VA.
24VDC: 115VA.

Weights (approximate)

Product Weight	4.25 Lbs. (1.927 kg).
Shipping Weight	4.75 Lbs. (2.154 kg).
