Brand: Altronix | SKU: 552932

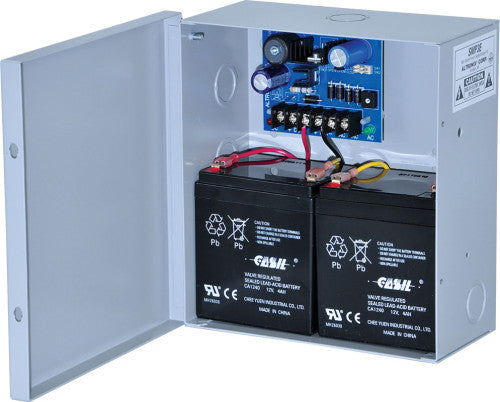

Altronix SMP3E | Power Supply Charger, Single Output, 6/12/24VDC @ 2.5A, 16-28VAC, BC100 Enclosure

$112.44

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

SMP3E power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC @ 2.5A continuous supply current. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Main Features

Includes battery leads.
Power supply/charger with enclosure.
Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to two (2) 12VDC/4AH Batteries.
Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
1/2" and 3/4" combination knockouts.

Input

6VDC or 12VDC output use TP1640 or 24VDC output use T2428100.

Output

6VDC, 12VDC or 24VDC selectable output.
2.5A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Battery short circuit protection (circuit breaker).

Visual Indicators

AC input and DC output LED indicators.

Weights (approximate)

Product Weight	2.8 Lbs. (1.27 kg).
Shipping Weight	3.8 Lbs. (1.72 kg).
