Brand: Altronix
|
SKU:
CS101798

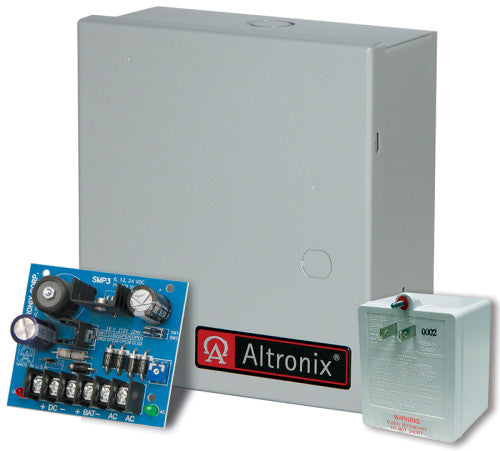

Altronix SMP3ET | Power Supply Charger, Single Output, 6/12 @ 2.5A, 16-28VAC, BC100 Enclosure, includes TP1640
Regular price
$136.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix SMP3ET | Power Supply Charger, Single Output, 6/12 @ 2.5A,...
Regular price
$136.05
Unit price
Description
Description
Altronix SMP3ET power supply/charger converts a low voltage AC input into a 6VDC or 12VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to one (1) 12VDC/7AH Batteries.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 16VDC from TP1640 plug-in transformer.
Output
- 6VDC or 12VDC selectable output.
- 2.5A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Battery short circuit protection (circuit breaker).
Visual Indicators
- AC input and DC output LED indicators.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.):
- 6VDC: 8 BTU/Hr.
- 12VDC: 15 BTU/Hr.
- System AC input VA requirement:
- 6VDC/12VDC: 276VA.
Weights (approximate)
| Product Weight | 3.3 Lbs. (1.5 kg). |
|---|---|
| Shipping Weight | 3.8 Lbs. (1.72 kg). |
