Brand: Altronix | SKU: 231020

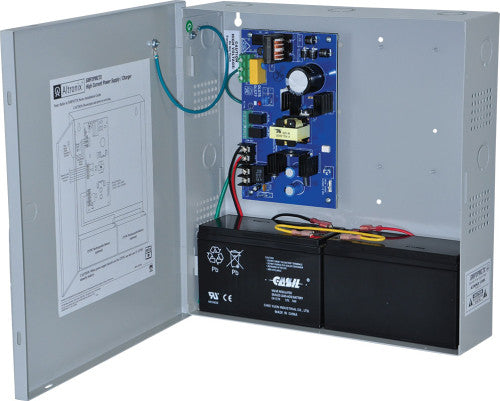

Altronix SMP3PMCTX | Power Supply Charger, Single Output, 12/24VDC @ 2.5A, 115/220VAC, Supervision, BC300 Enclosure

$227.59

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

SMP3PMCTX supervised power supply/charger will convert a 115VAC/230VAC, 50/60Hz input, into a regulated 12VDC or 24VDC output @ 2.5A continuous supply current.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to two (2) 12VDC/7AH Batteries.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Input

Input 115VAC, 50/60Hz, 0.65A or 230VAC, 50/60Hz, 0.35A.

Output

12VDC or 24VDC selectable output.
2.5A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Zero voltage drop when switching over to battery backup.

Supervision

AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).

Visual Indicators

AC input and DC output LED indicators.

Weights (approximate)

Product Weight	6.9 Lbs. (3.72 kg).
Shipping Weight	7.9 Lbs. (4.18 kg).

Documents and Downloads
