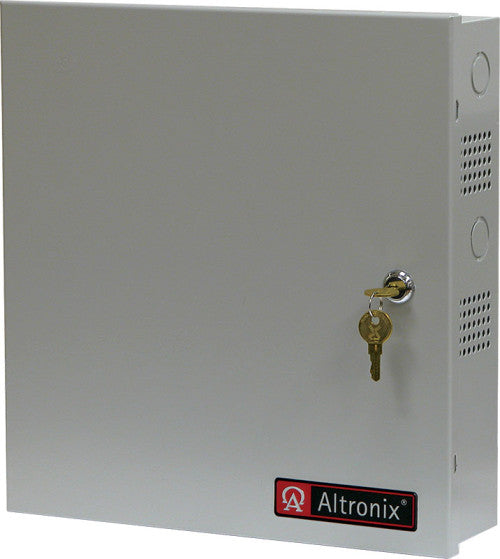

Altronix SMP5CTX | Power Supply Charger, Single Output, 12 or 24VDC @ 4A, 115/220VAC, BC300 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/7AH Batteries.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
• 1/2" and 3/4" combination knockouts.

Input

• Input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.5A.

Output

• 12VDC or 24VDC selectable output.
• 4A supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Zero voltage drop when switching over to battery backup.

Visual Indicators

• AC input and DC output LED indicators.

Temperature

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%
• BTU/Hr. (approx.):
• 12VDC: 25 BTU/Hr.
• 24VDC: 49 BTU/Hr.
• System AC input VA requirement:
• 115VAC: 109.25VA.
• 230VAC: 115VA.

Weights (approximate)
