Brand: Altronix | SKU: 730593

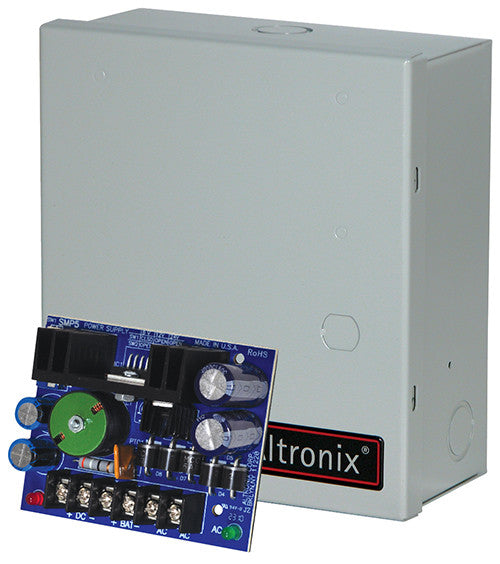

Altronix SMP5E | Power Supply/Charger Kit, Single Output, 6/12/24VDC @ 4A, 24/28VAC, BC100 Enclosure

$121.49

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix SMP5E power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Main Features

AC input and DC output LED indicators.
Extremely compact design.
Includes battery leads, nylon fastener and enclosure.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
1/2" and 3/4" combination knockouts.

Input

6VDC applications use TP1640.
12VDC applications use T2428100.
24VDC applications use T2428175.

Output

6VDC, 12VDC or 24VDC selectable output.
4A continuous supply current*.
Thermal overload and short circuit protection.
Filtered and electronically regulated outputs.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current 300mA.
Automatic switch over to stand-by battery.
Battery short circuit protection (PTC).

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
6VDC: 13 BTU/Hr.
12VDC: 25 BTU/Hr.
24VDC: 49 BTU/Hr.

Weights (approximate)

Product Weight	4.1 Lbs. (1.85 kg).
Shipping Weight	4.8 Lbs. (2.18 kg).
