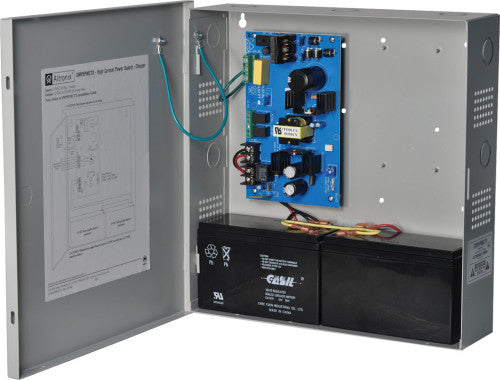

Altronix SMP5PMCTX | Power Supply Charger, Single Output, 12/24VDC @ 4A, 115VAC, Supervision, BC300 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/7AH Batteries.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
• 1/2" and 3/4" combination knockouts.

Input

• Input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.5A.

Output

• 12VDC or 24VDC selectable output.
• 4A supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Zero voltage drop when switching over to battery backup.

Supervision

• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).

Visual Indicators

• AC input and DC output LED indicators.

Weights (approximate)
