Brand: Altronix | SKU: 231016

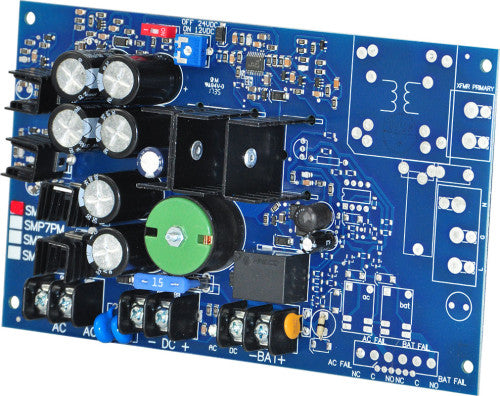

Altronix SMP7 | Power Supply Charger, Single Output, 12/24VDC @ 6A, 24/28VAC, Board

$138.59

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

SMP7 power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Specifications

Dimensions (approximate)

7.045"W x 4.266"L x 2.127"H (178.95 mm W x 108.36 mm L x 54.05 mm H).

Input

Input 28VAC.

Output

12VDC or 24VDC selectable output.
6A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Zero voltage drop when switching over to battery backup.

Visual Indicators

AC input and DC output LED indicators.

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
12VDC: 37 BTU/Hr.
24VDC: 75 BTU/Hr.
System AC input VA requirement: 184VA.

Weights (approximate)

Product Weight	0.5 Lbs. (0.23 kg).
Shipping Weight	0.65 Lbs. (0.29 kg).
