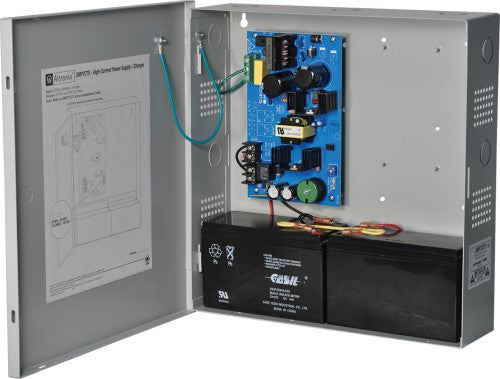

Altronix SMP7CTX | Power Supply Charger, Single Output, 12/24VDC @ 6A, 115VAC, BC300 Enclosure
Regular price
$309.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix SMP7CTX | Power Supply Charger, Single Output, 12/24VDC @ ...
Regular price
$309.48
Unit price
Description
Description
SMP7CTX power supply/charger converts a 115VAC / 60Hz input into a regulated 12VDC or 24VDC output @ 6A continuous supply current.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- Input 115VAC, 60Hz, 2.5A.
Output
- 12VDC or 24VDC selectable output.
- 6A supply current.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Zero voltage drop when switching over to battery backup.
Visual Indicators
- AC input and DC output LED indicators.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.):
- 12VDC: 37 BTU/Hr.
- 24VDC: 74 BTU/Hr.
- System AC input VA requirement: 287.5VA.
Weights (approximate)
| Product Weight | 7.8 Lbs. (3.538 kg). |
|---|---|
| Shipping Weight | 8.8 Lbs. (3.991 kg). |
